We know from working with Elite racers that they want a frame that's stiff, responsive and, above all, light. So these are exactly the qualities we built into our Elite 240 C:62's lightweight carbon frame, but scaled down perfectly to fit younger riders. Every single detail of the frame design is aimed at reducing weight without sacrificing strength or stiffness. A tapered head tube, full carbon fork and 12mm thru-axles front and rear ensure precise steering and efficient power transfer. We kept the seatstays narrow for a comfortable ride. And cables are routed internally for long-lasting precise shifting, so mum and dad can spend less time tweaking and more time cheering.

Young riders benefit even more than adults from a light bike. The Elite 240 C:62 Pro's carbon frame and fork save weight without sacrificing strength, and they're also really tough. With a wide range of gears, child-sized controls and hydraulic disc brakes, the only thing that's missing is a bundle of enthusiasm.

Features

• C:62® Carbon Fiber Technology: Not all carbon is created equal. With our C:62® carbon we increased the high modulus fibre content, then we reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.
• Internal Cable Routing: Cables connect your handlebar controls to vital components like gears and brakes, but there's no need for them to get in your way. With Internal Cable Routing we've reduced clutter and maintenance by running cables through the frame, keeping them out of the way of dust and water contamination – or damage from abrasion – as well as cleaning up your bike's appearance.
• Advanced Twin Mold: With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

Specifications

• Frame: C:62® Monocoque Advanced Twin Mold Technology, PressFit BB, Internal Cable Routing
• Fork: CUBE Carbon, 1 1/8", Internal Cable Routing, Flat Mount Disc, 12x100mm
• Headset: Acros AzX/AiX, block lock, Top: semi 1 1/8", Bottom: 1 1/8"
• Stem: AR CUBE Aluminium Lite
• Handlebar: AR CUBE Aluminium, 580mm, 25.4
• Grips: Natural Fit Kids Grip, Ø 19mm

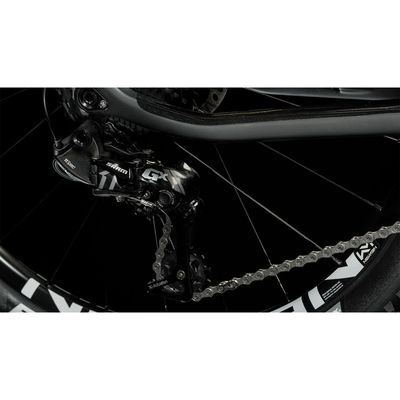

• Rear Derailleur: Sram GX, 11-Speed
• Shifters: Sram GX Trigger
• Brakes: Magura MT8 Pro, Flat Mount, Hydr. Disc Brake (140/140)

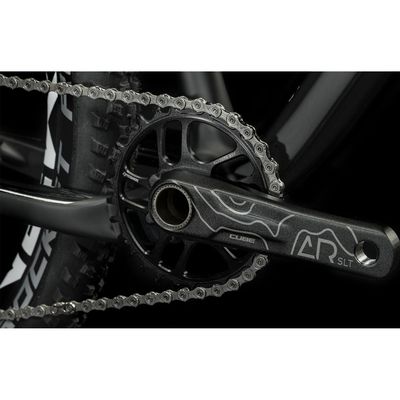

• Crankset: AR CUBE SL DMA 30T, 130mm
• Chainring: 30T
• Cassette: e*thirteen XCX Plus, 9-34T
• Gears: 11
• Chain: KMC X11
• Wheelset: Newmen Evolution X.A.25, 24/24 Spokes, Tubeless Ready
• Tyres: Schwalbe Rocket Ron Kevlar, 2.1

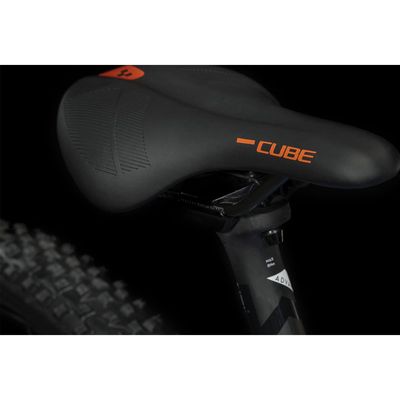

• Saddle: CUBE Kid
• Seatpost: Newmen Advanced, Carbon, 27.2mm
• Dropper: NO
• Seatpost Clamp: CUBE Superlight, 31.8mm
• Net Weight (kg): 6,7
• Gross Weight (kg): 9,8
• Max. System Weight (kg): 80

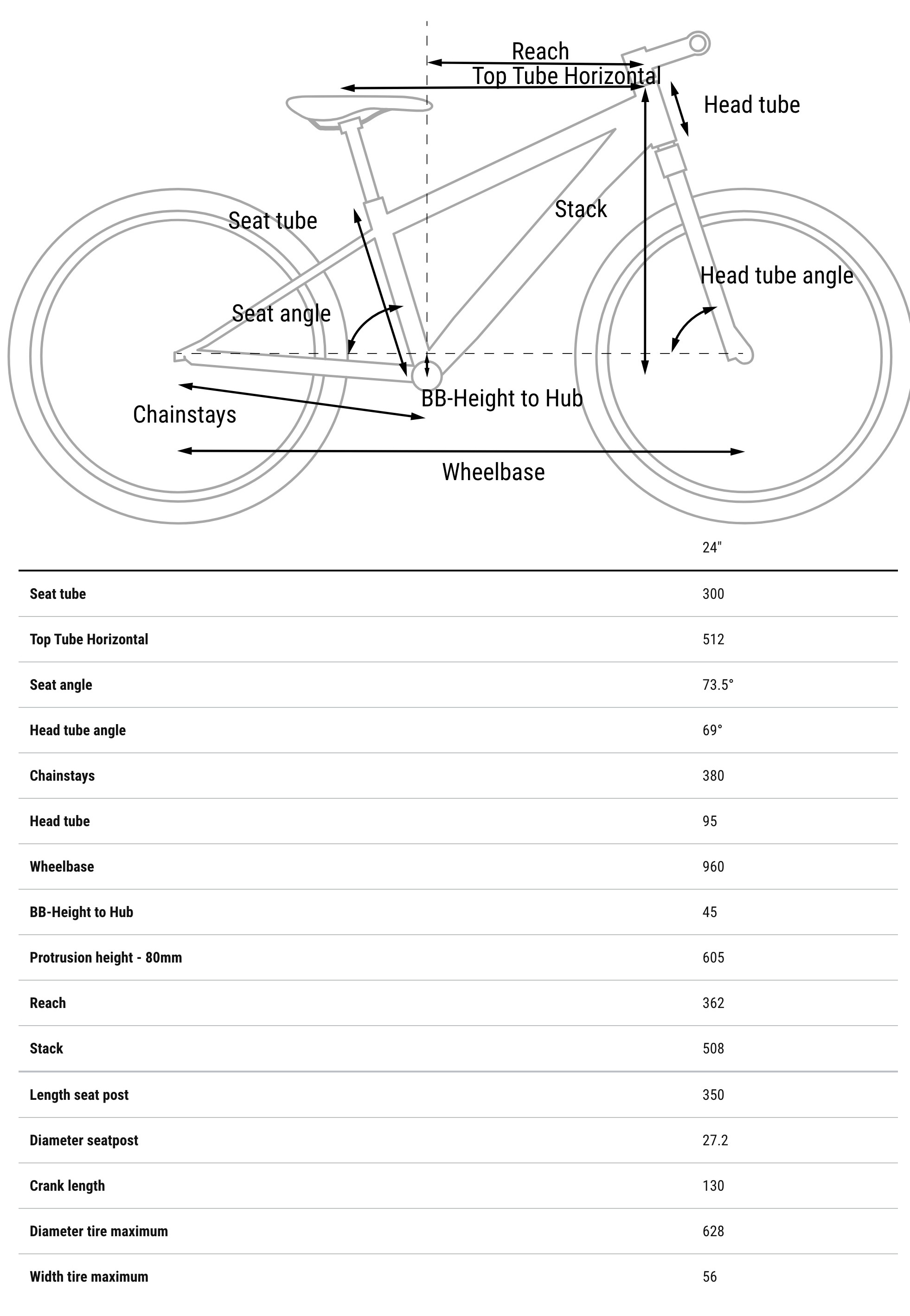

Geometry
