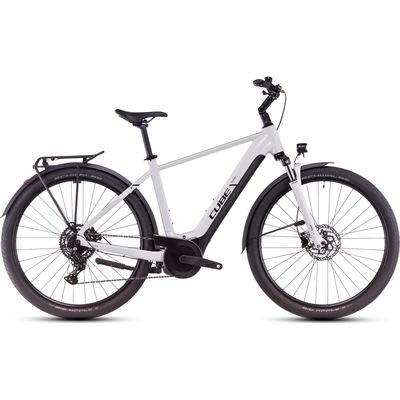

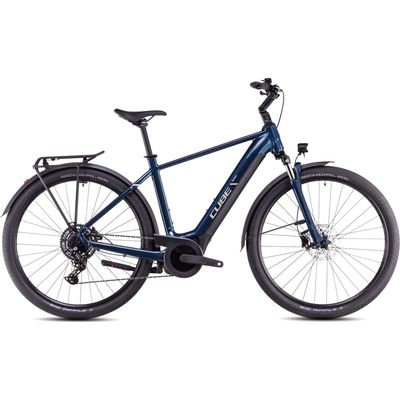

We made our classic Touring Hybrid to be versatile, easy to live with and comfortable. The powerful Bosch Performance motor with Bosch smart system and 500Wh PowerTube battery are all so neatly integrated into the design, you'll barely notice they're there – apart from the extra help at the pedals, of course. Efficient Comfort Geometry is designed around a 63mm-travel suspension fork for comfort and control, even on rough roads. The carrier is designed to make carrying a load easier, and the seat clamp even has a hidden tool in its lever. Add the ACID chain guard, kickstand and full-length mudguards and you've got everything you need.

One bike, many reasons: the Touring Hybrid wide choice of frame styles and sizes means there's one that's tailor-made just for you. With comfortable handling, a powerful Bosch Performance drive, 500Wh battery and a full complement of practical accessories, it's the bike that'll slot right into your busy life.

Features

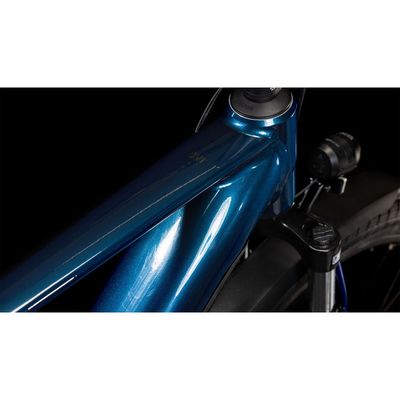

• Fully Integrated Battery: The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
• Modular Battery System: In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.

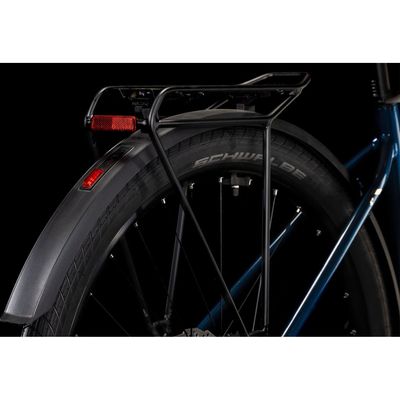

• Semi Integrated Carrier: A luggage carrier needn't be a complicated, ugly addition to your bike. Our Semi-Integrated Carrier is so neat, you'll barely notice it... until it's time to carry something back from the shops, or ride to work, or nip across town to fetch something. Sturdy and adaptable, it's just what you need to make day-to-day life a little easier.
• Efficient Comfort Geometry: With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.
• Gravity Casting: Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with our Hybrid models we're able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.
• Aluminium Superlite: CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Specifications

• Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, 1.5 Headtube, Semi Integrated Carrier

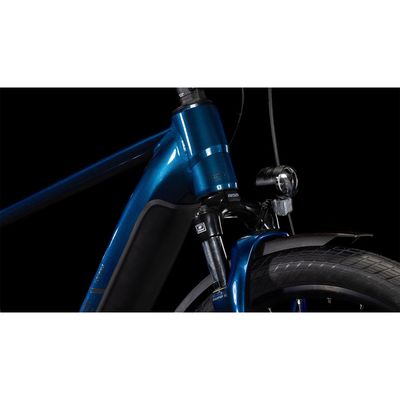

• Fork: SR Suntour NVX30 Coil, 63mm
• Headset: ACROS AZF-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable

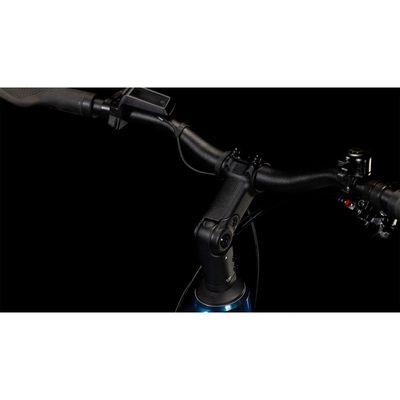

• Handlebar: CUBE Comfort Trail Bar, 700mm
• Grips: ACID Travel Comfort
• Rear Derailleur: Shimano Cues RD-U4000-GS, 9-Speed
• Shifters: Shimano Cues SL-U4010, Rapidfire-Plus
• Brakes: Shimano BR-MT200, Hydr. Disc Brake (180/180)
• Crankset: ACID Trekking Hybrid, 40T
• Chainring: 40T
• Cassette: Shimano Cues CS-LG300, 11-46T
• Gears: 9
• Chain: KMC eGlide
• Rims: CUBE EX25, 32H, Disc, Tubeless Ready
• Front Hub: Shimano HB-QC300, QR, Centerlock
• Rear Hub: Shimano FH-QC300-HM, QR, Centerlock
• Tyres: Schwalbe Big Apple, Active, 55-622
• Pedals: ACID PP MTB
• Saddle: ACID Sequence Pro Plus
• Seatpost: CUBE Performance Post, 30.9mm
• Dropper: NO

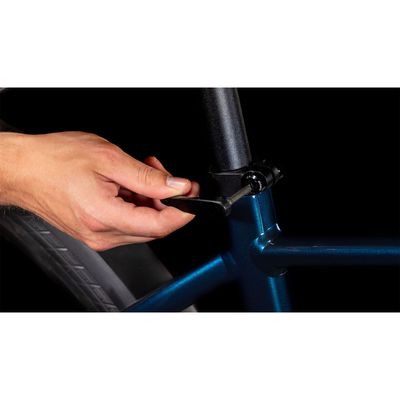

• Seatpost Clamp: CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm
• Front Light: ACID Front Light PRO-E 60, 12V, DC
• Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
• Kickstand: ACID FM Pure Kickstand
• Mudguard: ACID 65 BB-Mount
• Bell: Easy Bell
• Carrier: ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
• Engine: Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
• Battery: Bosch PowerTube 500
• Charger: Bosch 2A
• Remote: Bosch Purion 200 w/ Integrated Display
• Net Weight (kg): 26,7
• Gross Weight (kg): 31,5
• Max. System Weight (kg): 140
