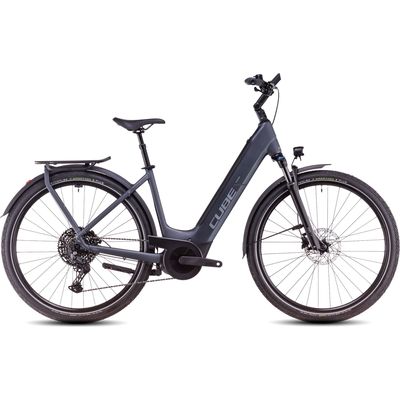

The Touring Hybrid classic frame looks great because, even if we do say so ourselves, we like to sweat the details. So, for example, the IC 3.0 Integrated Carrier is sturdy and adaptable, and the seat clamp even has a hidden tool in its lever. The powerful Bosch Performance motor with smart system and 625Wh PowerTube battery are neatly integrated into the frame, and we designed the Efficient Comfort Geometry around a 63mm suspension fork so you've got more comfort and control on rough roads. And, because we included a full set of accessories – including mudguards, kickstand and lights – you're all set for work or for play.

The ideal bike should slot right into your life. That's why the Bosch smart system-powered Touring Hybrid Pro is available in a wide range of frame styles and sizes, so you can pick the one that's perfect for you. It's also the reason we fitted it with a range of practical accessories like IC 3.0 carrier, mudguards and kickstand.

Features

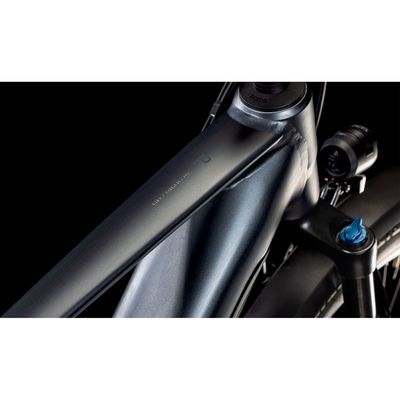

• Fully Integrated Battery: The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.

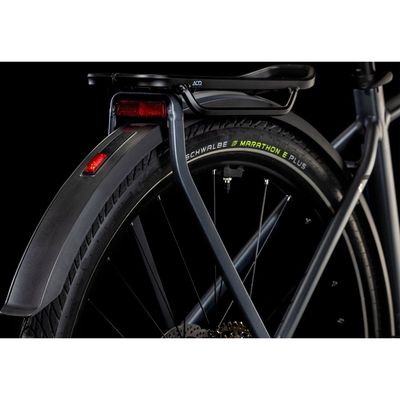

• Integrated Carrier 3.0: The Integrated Carrier 3.0 is the next level in system integration: from the side, it's hard to tell where the luggage carrier ends and the mudguard begins. But it doesn't just look good, it's also incredibly strong and rigid. With an integrated spring clamp and CUBE Rilink ready adaptor for mounting bags and baskets, it transforms your CUBE into an adaptable and versatile load carrier.
• Modular Battery System: In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.
• Efficient Comfort Geometry: With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.
• Gravity Casting: Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with our Hybrid models we're able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.
• Aluminium Superlite: CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Specifications

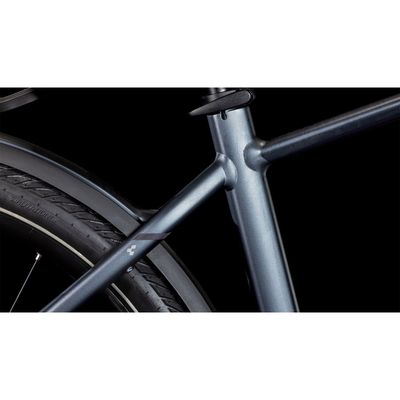

• Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, 1.5 Headtube, Integrated Carrier 3.0
• Fork: SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 63mm
• Headset: ACROS AZF-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
• Handlebar: CUBE Comfort Trail Bar, 700mm
• Grips: ACID Travel Comfort
• Rear Derailleur: Shimano Cues RD-U6000-GS, 11-Speed
• Shifters: Shimano Cues SL-U6000, Rapidfire-Plus
• Brakes: Shimano BR-MT200, Hydr. Disc Brake (180/180)
• Crankset: ACID Trekking Hybrid, 40T
• Chainring: 40T
• Cassette: Shimano Cues CS-LG400, 11-50T
• Gears: 11
• Chain: KMC eGlide
• Rims: CUBE EX25, 32H, Disc, Tubeless Ready
• Front Hub: CUBE Engineered By Newmen, 15mm, Boost, Centerlock
• Rear Hub: Shimano FH-QC300-HM, QR, Centerlock
• Tyres: Schwalbe Marathon E-Plus, Performance, 55-622
• Pedals: ACID PP MTB
• Saddle: ACID Sequence Pro Plus
• Seatpost: CUBE Suspension Seatpost HD, 30.9mm
• Dropper: NO
• Seatpost Clamp: CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm

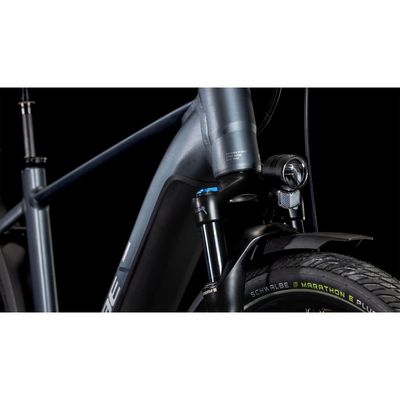

• Front Light: ACID Front Light PRO-E 60, 12V, DC
• Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
• Kickstand: ACID FM Pure Kickstand
• Mudguard: ACID 65 Integrated Carrier 3.0
• Bell: Easy Bell
• Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
• Engine: Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
• Battery: Bosch PowerTube 625
• Charger: Bosch 2A
• Remote: Bosch LED Remote

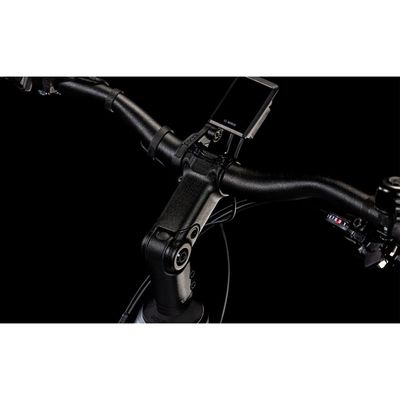

• Display: Bosch Kiox 300
• Net Weight (kg): 29,3
• Gross Weight (kg): 34,3
• Max. System Weight (kg): 140
