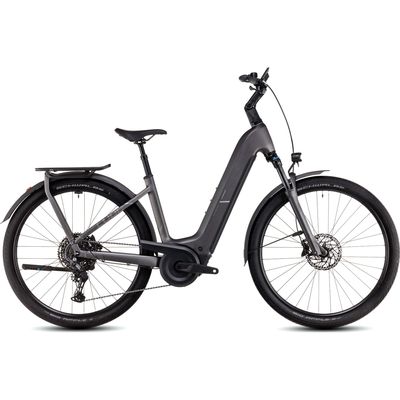

The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800 Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chainguard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

CUBE hybrid is your passport to freedom. With its powerful Bosch CX drive and stunning CUBE design, the Kathmandu Hybrid Pro 800 has everything you need to explore further. Comfortable and endlessly versatile, it's all you need to expand your horizons.

Features

• Fully Integrated Battery: The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
• Integrated Seatpost Clamp: Our Integrated Seatpost Clamp is all part of our quest to sweat the details, so that you can reap the rewards. Its minimalist design suits the frame's pared-back aesthetic. And, of course, that's important – because why wouldn't you want your bike to look great? But it also saves a few grammes too. And that matters just as much...

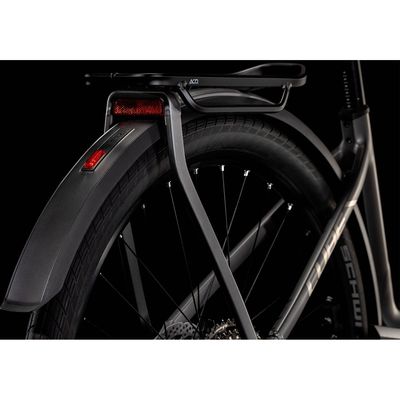

• Integrated Carrier 3.0: The Integrated Carrier 3.0 is the next level in system integration: from the side, it's hard to tell where the luggage carrier ends and the mudguard begins. But it doesn't just look good, it's also incredibly strong and rigid. With an integrated spring clamp and CUBE Rilink ready adaptor for mounting bags and baskets, it transforms your CUBE into an adaptable and versatile load carrier.
• Modular Battery System: In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.
• Boost148: A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
• Internal Cable Routing: Cables connect your handlebar controls to vital components like gears and brakes, but there's no need for them to get in your way. With Internal Cable Routing we've reduced clutter and maintenance by running cables through the frame, keeping them out of the way of dust and water contamination – or damage from abrasion – as well as cleaning up your bike's appearance.
• Front Carrier Ready: Carrying your belongings, shopping or work bag just got a little easier. Our new HIC (Headset Integrated Carrier) fits simply, neatly and very securely on the front of your CUBE bike to add accessible, stable and versatile load-carrying capacity. With the ability to safely accommodate a Eurobox of 300mm x 400mm, up to 20kg in weight and RILink accessories, you'll wonder how you managed without.
• Efficient Comfort Geometry: With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.
• Universal Derailleur Hanger: One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.
• Gravity Casting: Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with our Hybrid models we're able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.
• Aluminium Superlite: CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.
• Frame organics: A bicycle frame is an amazing piece of engineering. And now, with our Smooth Welding technology, we're able to give it the elegant appearance it thoroughly deserves. With no visible weld beads, one tube appears to flow seamlessly into the next.

Specifications

• Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
• Fork: SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm
• Headset: ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
• Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
• Handlebar: CUBE Comfort Trail Bar, 700mm
• Grips: ACID Travel Comfort
• Rear Derailleur: Shimano Cues RD-U6000-GS, 11-Speed
• Shifters: Shimano Cues SL-U6000, Rapidfire-Plus
• Brakes: Shimano BR-MT420, Hydr. Disc Brake (180/180)
• Crankset: ACID MTB Hybrid Pro
• Cassette: Shimano Cues CS-LG400, 11-50T
• Chain: KMC eGlide
• Rims: CUBE EX25, 32H, Disc, Tubeless Ready
• Front Hub: CUBE Engineered By Newmen, 15mm, Boost, Centerlock
• Rear Hub: CUBE Engineered By Newmen, 12mm, Boost, Centerlock
• Tyres: Schwalbe Big Apple, Active, 55-622
• Pedals: ACID PP MTB
• Saddle: ACID Sequence Pro Plus
• Seatpost: CUBE Suspension Seatpost HD, 31.6mm
• Dropper: NO
• Front Light: ACID Front Light PRO-E 60 X-Connect, 12V, DC
• Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
• Kickstand: ACID FM Pure Kickstand
• Mudguard: ACID 65 Integrated Carrier 3.0
• Bell: Easy Bell
• Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
• Engine: Bosch Drive Unit Performance Line CX, Smart System
• Battery: Bosch PowerTube
• Charger: Bosch 2A
• Remote: Bosch LED Remote
• Display: Bosch Kiox 500
• Net Weight (kg): 27,6
• Gross Weight (kg): 32,6
• Max. System Weight (kg): 140

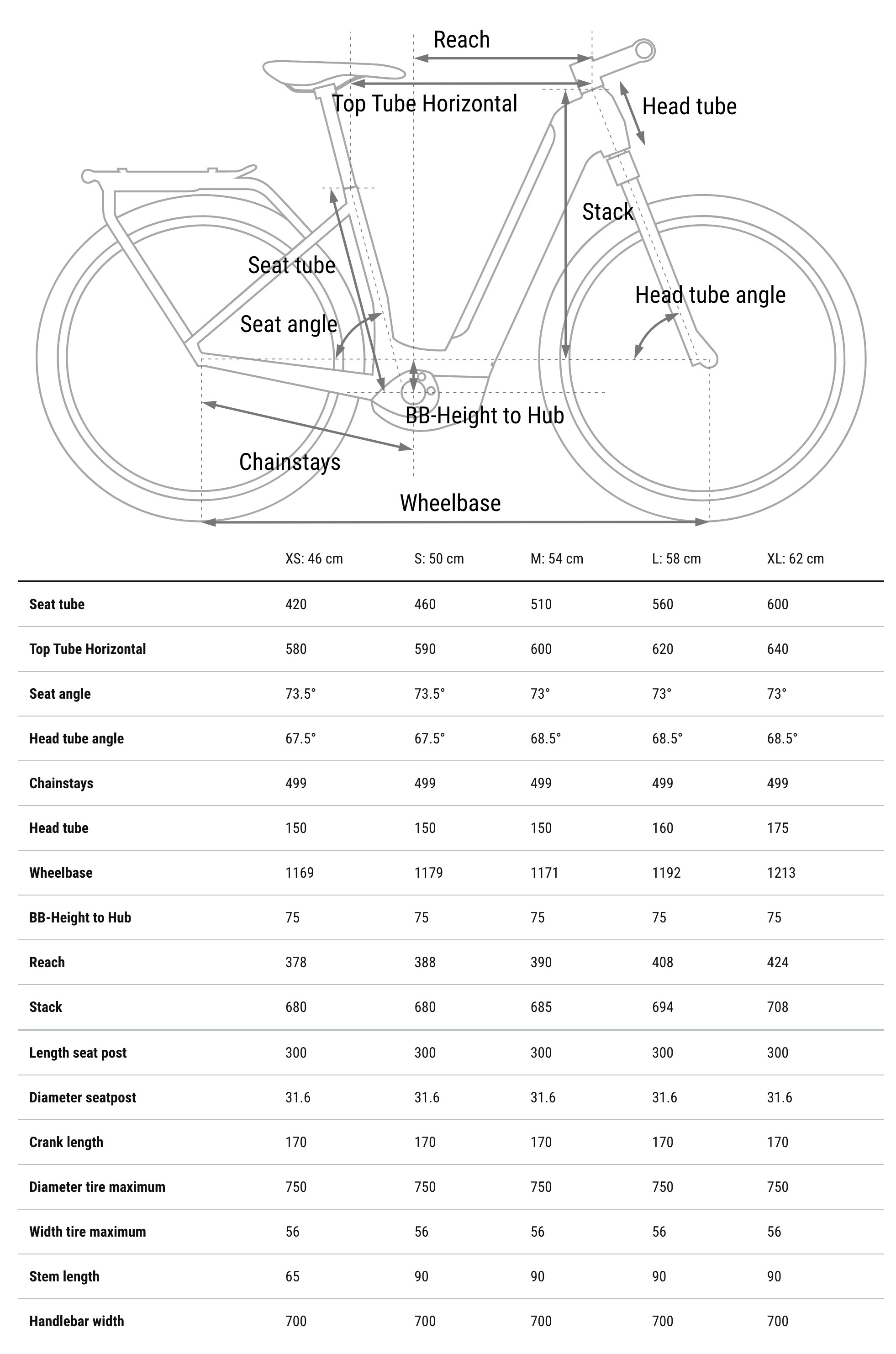

Geometry
