Simple, elegant, safe and practical: those are the qualities embodied by the Supreme Hybrid's frame. The PowerTube design incorporates the Bosch 500Wh battery inside the frame for sleek looks, whilst the Bosch Active Plus drive is housed so neatly you'll barely notice it's there. The Easy Entry design does exactly what it says, making access simple – and there's a wide range of sizes from 42 to 58cm, to make it simple for anyone to find their perfect fit. We used a tapered head tube because it's strong, safe and improves steering accuracy for easy, intuitive handling. There's a semi-integrated luggage carrier, and the frame is specifically designed for low-maintenance hub gears. But it's not all about practicality – we also used our Smooth Welding technique for an organic, elegant appearance that you'll love.

The Supreme Hybrid Comfort ONE 500 is ready to slot straight into your life: one bike, many reasons. Its smooth Bosch power, Easy Entry frame and confidence-inspiring handling make light work of any two-wheeled journey, and a luggage carrier and full complement of accessories mean you're ready for anything. For work, for play, for life: the bike that will do it all.

Features

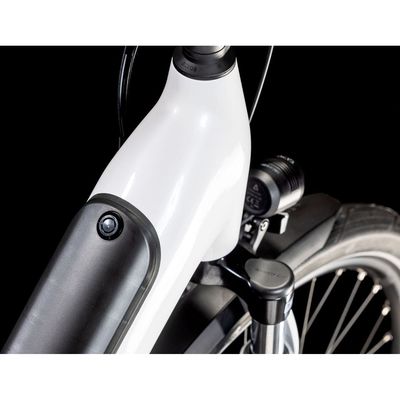

• Fully Integrated Battery: The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
• Modular Battery System: In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.

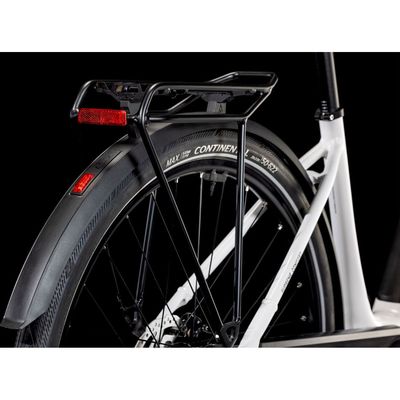

• Semi Integrated Carrier: A luggage carrier needn't be a complicated, ugly addition to your bike. Our Semi-Integrated Carrier is so neat, you'll barely notice it... until it's time to carry something back from the shops, or ride to work, or nip across town to fetch something. Sturdy and adaptable, it's just what you need to make day-to-day life a little easier.
• Comfort Ride Geometry: As you might expect, our Comfort Ride Geometry delivers maximum comfort on two wheels. Because after all, who doesn't want a comfortable ride? We sweated the details of frame angles and dimensions to create a natural-feeling ride position and the ideal combination of stability and agility, so you not only feel comfortable but safe, too.
• Smooth Welding: Smooth Welding isn't easy, but worthwhile things usually aren't. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.
• Aluminium Superlite: CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Specifications

• Frame: Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Fully Integrated Battery
• Fork: SR Suntour NEX-E25, 50mm
• Headset: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

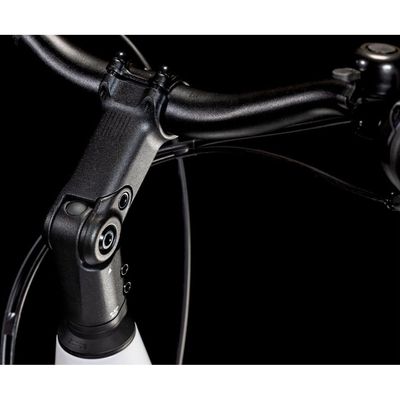

• Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
• Handlebar: CUBE Comfort Shape Bar
• Grips: ACID Travel Comfort Gripshift
• Shifters: Shimano Nexus SL-C6000-8, Revoshift
• Brakes: Shimano BR-MT200, Hydr. Disc Brake (180/180)
• Crankset: ACID Trekking Hybrid, 38T
• Chainring: 38T
• Gear Teeth: Shimano Nexus, 20T
• Chain: KMC Z610
• Rims: CUBE EX25, 32H, Disc, Tubeless Ready
• Front Hub: Shimano HB-QC300, QR, Centerlock
• Rear Hub: Shimano Nexus SG-C6001-8D, 8-Speed, Centerlock
• Tyres: Conti Contact Urban, 50-622
• Pedals: ACID PP MTB
• Saddle: ACID Shen Pro
• Seatpost: CUBE Performance Post, 30.9mm
• Dropper: NO
• Seatpost Clamp: CUBE Screwlock, 36mm
• Front Light: ACID Front Light PRO-E 60, 12V, DC
• Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
• Kickstand: ACID FM Pure Kickstand
• Mudguard: ACID 56 BB-Mount
• Bell: Easy Bell
• Carrier: ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
• Engine: Bosch Drive Unit Active Line Plus Generation 3 (50Nm) Cruise (250Watt), Smart System
• Battery: Bosch PowerTube 500
• Charger: Bosch 2A
• Remote: Bosch Purion 200 w/ Integrated Display
• Net Weight (kg): 27,3
• Gross Weight (kg): 32,3
• Max. System Weight (kg): 140

Geometry
