We built the Supreme Hybrid's frame to be simple, safe, elegant and practical. The PowerTube design incorporates the Bosch 625Wh battery inside the frame for sleek looks, whilst the Bosch CX drive – with up to 85Nm of pedal assistance – is housed so neatly you'll barely notice it's there. The Easy Entry design does exactly what it says, making access simple – and there's a range of sizes from 46 to 58cm. We used a tapered head tube because it's strong, safe and improves steering accuracy for easy, intuitive handling. There's a semi-integrated luggage carrier, and the frame is specifically designed for low-maintenance hub gears. But it's not all about practicality – we also used our Smooth Welding technique for an organic, elegant appearance that you'll love.

Getting around town should be a pleasure, not a chore. That's why we fitted the Supreme Hybrid Deluxe ONE 625 with a smooth Bosch motor and a 625Wh battery, to give your pedalling a little help. With comfortable handling and practical accessories, it's all you need for two-wheeled city life.

Features

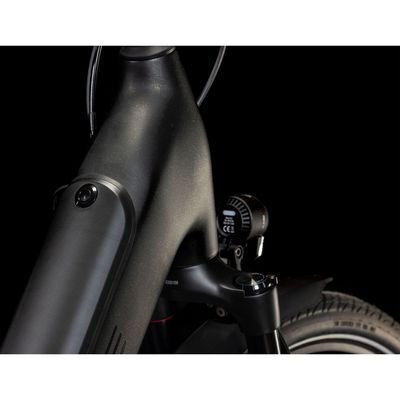

• Fully Integrated Battery: The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
• Modular Battery System: In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.
• Semi Integrated Carrier: A luggage carrier needn't be a complicated, ugly addition to your bike. Our Semi-Integrated Carrier is so neat, you'll barely notice it... until it's time to carry something back from the shops, or ride to work, or nip across town to fetch something. Sturdy and adaptable, it's just what you need to make day-to-day life a little easier.
• Comfort Ride Geometry: As you might expect, our Comfort Ride Geometry delivers maximum comfort on two wheels. Because after all, who doesn't want a comfortable ride? We sweated the details of frame angles and dimensions to create a natural-feeling ride position and the ideal combination of stability and agility, so you not only feel comfortable but safe, too.
• Smooth Welding: Smooth Welding isn't easy, but worthwhile things usually aren't. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.
• Aluminium Superlite: CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Specifications

• Frame: Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Fully Integrated Battery, Slider Dropout
• Fork: RockShox Paragon Gold Air, 50mm, Lockout
• Headset: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
• Handlebar: CUBE Comfort Shape Bar
• Grips: ACID Travel Comfort Gripshift
• Shifters: Enviolo AC-CLIQ Automatiq
• Brakes: Magura MT C:62 ABS, Hydr. Disc Brake (180/180)
• Crankset: ACID Trekking Hybrid, 50T
• Chainring: 50T
• Cassette: Gates Rear Sprocket E9 CDX, 24T
• Belt: Gates CDX, 128T
• Rims: CUBE EX25, 32H, Disc, Tubeless Ready
• Front Hub: Shimano HB-QB400, QR. 6-Bolt
• Rear Hub: Enviolo Trekking, 380%, 6-Bolt, 135mm
• Tyres: Schwalbe Marathon E-Plus, 50-622
• Pedals: ACID PP MTB
• Saddle: ACID Shen Pro

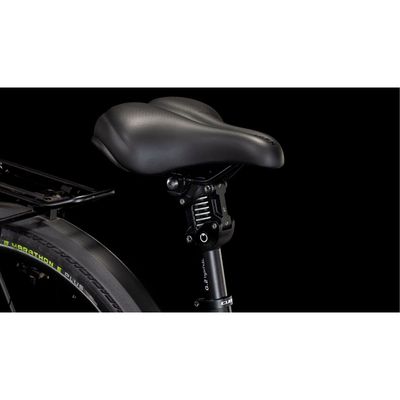

• Seatpost: BySchulz G.2 Parallelogram Suspension Seatpost, 30.9mm
• Dropper: NO
• Seatpost Clamp: CUBE Screwlock, 36mm
• Front Light: ACID Front Light PRO-E 150, 12V, DC
• Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
• Kickstand: ACID FM Pure Kickstand
• Mudguard: ACID 56 BB-Mount
• Bell: ACID Alpha
• Carrier: ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
• Engine: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
• Battery: Bosch PowerTube 625
• Charger: Bosch 4A
• Remote: Bosch LED Remote
• Display: Bosch Kiox 500
• Net Weight (kg): 29,7
• Gross Weight (kg): 34,7
• Max. System Weight (kg): 150
