We built the Stereo Hybrid ONE44 to be as adaptable as it is capable. With its compact 800 Wh PowerTube battery and revised, quieter Bosch CX drive unit, it features 140mm of front and rear wheel travel and includes space for mudguards. Internal Cable Routing flatters the frame's clean, organic lines as well as reducing the need for maintenance. There's a set of SIC 2.0 mounting points for the addition of an optional luggage carrier, the UDH dropout is future-proof and the direct mount chainguard is neat and unobtrusive. Plus, with Size Split, there's a frame to suit almost every rider.

This is where the magic happens. CUBE's suspension kinematics and carbon frame tech delivers a magic carpet ride, while Bosch power and reliable components give you the tools you need to make light work of any trail. The Stereo Hybrid ONE44 HPC SLX 800: it's got your name on it.

Features

• Fully Integrated Battery: The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
• Kickstand/Fender/Carrier Mounting Points: Accessories like a kickstand, fenders and luggage carrier can really extend the versatility of your CUBE bike. We designed mounting points that integrate so neatly with each frame, you'll barely notice they're there – but they also provide a simple, strong and secure attachment for any future upgrades.
• Advanced Internal Cable Routing: Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
• Integrated Seatpost Clamp: Our Integrated Seatpost Clamp is all part of our quest to sweat the details, so that you can reap the rewards. Its minimalist design suits the frame's pared-back aesthetic. And, of course, that's important – because why wouldn't you want your bike to look great? But it also saves a few grammes too. And that matters just as much...
• Modular Battery System: In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.
• SizeSplit: The right bike should fit you perfectly. That's why we created SizeSplit. For shorter riders, the smaller 27.5in wheel standard allows us to build frames that fit well while remaining agile and sure-footed. And, for taller riders, we built a range of sizes around the fast-rolling 29er wheel standard. Whichever one you choose, you can be sure of a fit that makes your bike feel as though it was built just for you.
• Boost148: A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
• Agile Comfort Geometry: Your bike should be a pleasure to ride wherever your curiosity leads you, which is why we created Agile Comfort Geometry. With a careful blend of reassuring handling, ride-all-day comfort and an on-the-bike position that feels natural and welcoming, you'll look forward to every ride.
• Additional Mounting Points Top Tube: There are times when it's really useful to have a lock or a multi-tool with you, but what if you don't have a suitable bag? The Reaction Hybrid Performance frame has you covered, with dedicated mounting points below the top tube specifically designed to accommodate a compatible lock or tool. Convenient, rattle-free and always to hand...
• Universal Derailleur Hanger: One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.
• Gravity Casting: Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with our Hybrid models we're able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.
• Aluminium Superlite: CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.
• Frame organics: A bicycle frame is an amazing piece of engineering. And now, with our Smooth Welding technology, we're able to give it the elegant appearance it thoroughly deserves. With no visible weld beads, one tube appears to flow seamlessly into the next.
• Direct Mount chainguard: No-one wants an oily or dirty chain anywhere near their clothes. So, since chains can get oily and dirty over time, we developed the Direct Mount chainguard. It's neat, unobtrusive and helps keep your clothes away from moving parts so that you arrive at your destination clean and fresh.
• SIC 2.0 (optional): Easy to fit and even easier to live with, the optional Semi-Integrated Carrier 2.0 is the perfect way to extend the versatility of your CUBE bike. Strong and versatile, it's the ideal way to convert your bike to a tourer, take on the daily commute, or even go shopping with your bike. Have it your way.

Specifications

• Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
• Fork: Fox 36 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm
• Shock: Fox Float Performance, 230x60mm (27.5: 210x55mm), Open/Firm Mode
• Shock Hardware: Front: 30x8mm, Rear: DU-Bushing 12,7mm
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
• Stem: CUBE Performance Stem E-MTB 35, FPI-Link
• Handlebar: CUBE Rise Trail Bar 35
• Grips: ACID Disrupt
• Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
• Shifters: Shimano XT SL-M8100-IR, Direct Attach
• Brakes: Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
• Crankset: ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
• Chainring: 34T
• Cassette: Shimano Deore CS-M6100, 10-51T
• Gears: 12
• Chain: KMC e12
• Wheelset: Newmen Performance 30, 28/32 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready
• Front Tyre: Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
• Rear Tyre: Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
• Saddle: ACID Venec EMTB Trail 140
• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
• Dropper: YES
• Seatpost Clamp: CUBE Semi-Integrated
• Engine: Bosch Drive Unit Performance Line CX, Smart System
• Battery: Bosch PowerTube
• Charger: Bosch 4A
• Remote: Bosch System Control incl. Mini Remote
• Display: Bosch Display
• Net Weight (kg): 24,4
• Gross Weight (kg): 29,28
• Max. System Weight (kg): 160

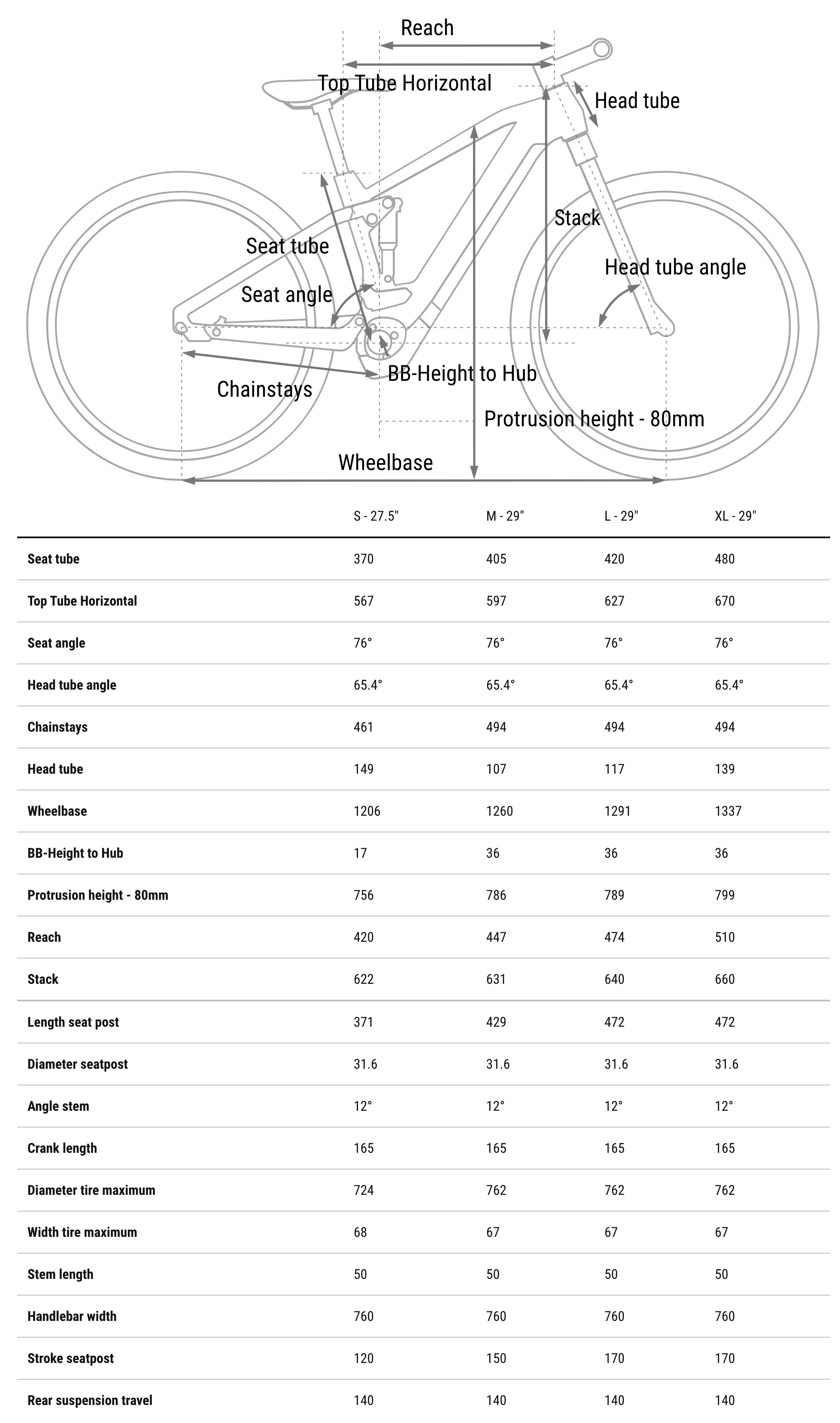

Geometry
