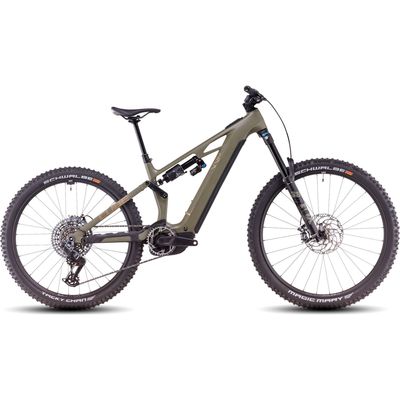

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks and reduced maintenance, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800 Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a direct mount chainguard to keep you driving forwards even when the going gets rough.

The Trail Motion name only gets added to special bikes. Good thing the Stereo Hybrid ONE77 HPC TM 800 is special, then. With its mountain-taming suspension and geometry, carefully selected components, Bosch power and 800 Wh battery, it's ready for gravity-fuelled fun.

Features

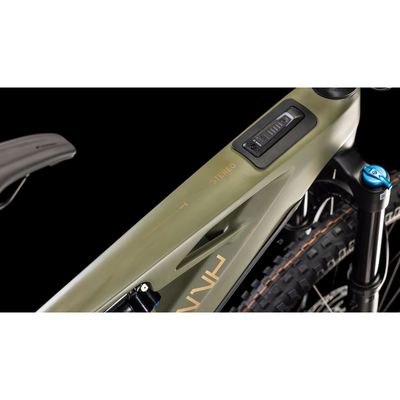

• Fully Integrated Battery: The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
• Advanced Internal Cable Routing: Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
• Modular Battery System: In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.

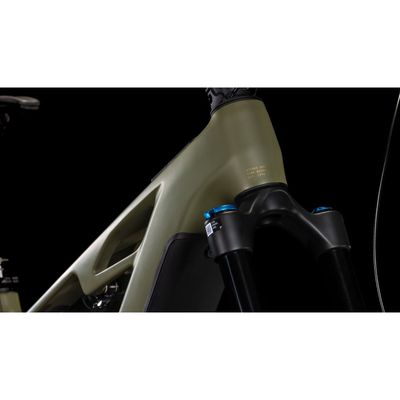

• Adjustable headset angle: When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
• Boost148: A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
• Semi Integrated Seatpost Clamp: In the rough and tumble of cyclocross racing, every detail matters. Our Semi Integrated Seat Post Clamp complements the frame's sleek lines to the point where you barely notice it's there. So it looks great, but it's also less likely to snag when you shoulder your bike for the running sections. Details, see?
• Agile Trail Geometry: Agile Trail Geometry is a development of our popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, we've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.

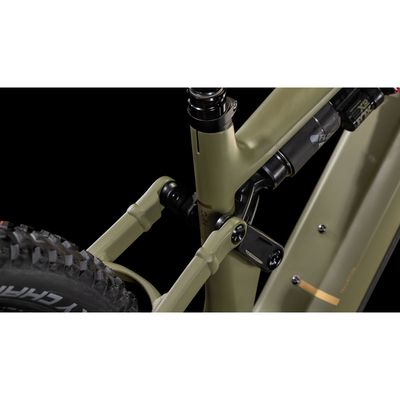

• Efficient Trail Control: Our Efficient Trail Control series works in the background so that everyone can have more fun on the trail. A low leverage ratio and linear compression rate are the technical way of saying that these bikes are very sensitive to trail obstacles, whilst remaining insensitive to pedal-induced bob and giving a full range of travel.

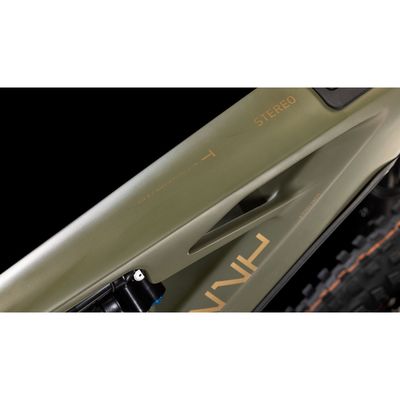

• High Performance Carbon: HPC – high performance carbon – enables us to build lighter, stronger and stiffer frames out of this incredibly versatile material. Using a combination of careful frame design and variable lay-up thickness, we're able to fine-tune the performance of each frame to precisely meet our requirements for weight, stiffness, strength and durability.
• Universal Derailleur Hanger: One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.
• Advanced Twin Mold: With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.
• Flat Mount kickstand: Bicycles don't stand upright when they're not moving, which creates obvious problems when you need to park. What if there's nowhere convenient against which to lean your bike? The Flat Mount kickstand solves the problem, by providing a secure and easy-to-use option for parking your CUBE bike anywhere that has a flat surface.

Specifications

• Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
• Fork: Fox 38 Float GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Optimized, 170mm

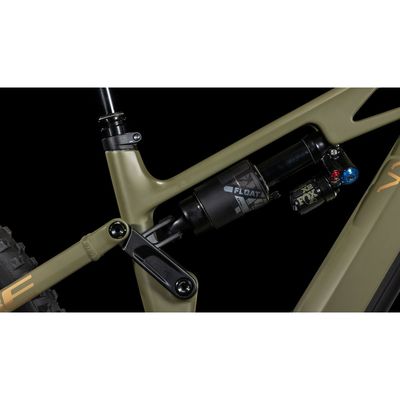

• Shock: Fox Float X2 Performance, 230x65mm, Low Speed Rebound & Compression w/ 2-Position Lever
• Shock Hardware: Front: 30x8mm, Rear: DU-Bushing 12,7mm
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
• Stem: CUBE Performance Stem E-MTB 35, FPI-Link
• Handlebar: CUBE Rise Trail Bar 35
• Grips: ACID Disrupt, Soft Compound

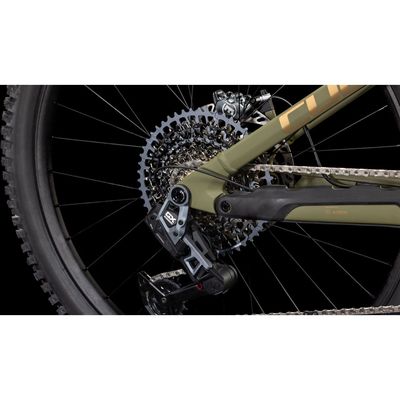

• Rear Derailleur: Sram GX Eagle AXS™ Transmission, 12-Speed
• Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
• Shifters: Sram AXS™ Pod Controller
• Brakes: Magura MT7, Hydr. Disc Brake (203/203)
• Crankset: ACID MTB Hybrid Pro, 36T
• Chainring: 36T
• Cassette: Sram XS-1275, 10-52T
• Gears: 12
• Chain: Sram GX Eagle™ Transmission
• Wheelset: Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Front Tyre: Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4
• Rear Tyre: Schwalbe Tacky Chan, Addix Soft, Super Gravity, Kevlar, 2.4
• Saddle: ACID Venec EMTB Trail 140
• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
• Dropper: YES
• Seatpost Clamp: CUBE Semi-Integrated
• Engine: Bosch Drive Unit Performance Line CX, Smart System
• Battery: Bosch PowerTube
• Charger: Bosch 4A
• Remote: Bosch System Control incl. Mini Remote
• Display: Bosch Display
• Net Weight (kg): 24,3
• Gross Weight (kg): 29,3
• Max. System Weight (kg): 160
