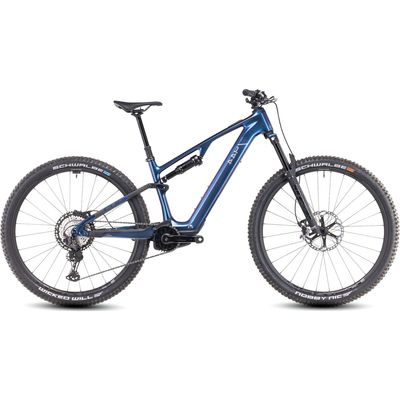

Building an ultralight Bosch-powered full-suspension bike isn't easy. That's why the AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the new, lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal cable routing complements the frame's sleek silhouette and there's a lightweight direct mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.

Trail riding with an extra boost from Bosch's new SX motor. That's what the AMS Hybrid ONE44 C:68X SLX delivers, in an ultralight carbon-framed package crafted from our premium C:68X® material. With Shimano XT gearing and Fox Performance shock, it's your trail wingman.

Features

• C:68X® Carbon Fiber Technology: Combining all our expertise from carbon frame building into the ultimate material, C:68X® carbon uses the optimum blend of fibre and nano particle-infused resin. Precision Advanced Twin Mold manufacturing means we can avoid bonded sleeves or inserts, too. It's the new benchmark for light, stiff and strong.
• Advanced Internal Cable Routing: Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

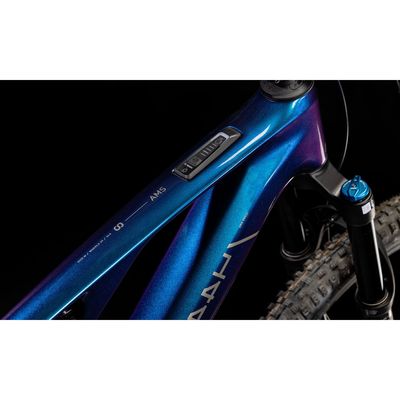

• Fixed Integrated Battery: Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, we've integrated the new battery fully into the down tube. This means we can position it optimally for the best weight distribution and handling, as well as saving more weight by building a down tube that's precisely the right size to fit, and without the need for an access hatch. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It's the best of both worlds.
• Adjustable headset angle: When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
• Boost148: A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
• Agile Trail Geometry: Agile Trail Geometry is a development of our popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, we've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.
• Efficient Trail Control: Our Efficient Trail Control series works in the background so that everyone can have more fun on the trail. A low leverage ratio and linear compression rate are the technical way of saying that these bikes are very sensitive to trail obstacles, whilst remaining insensitive to pedal-induced bob and giving a full range of travel.
• Universal Derailleur Hanger: One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.
• Advanced Twin Mold: With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

Specifications

• Frame: C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing

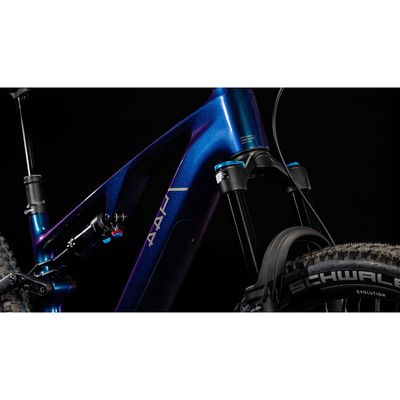

• Fork: Fox 34 Float Performance GRIP, 3-Position w/ Micro Adjust, Tapered, 15x110mm, 140mm

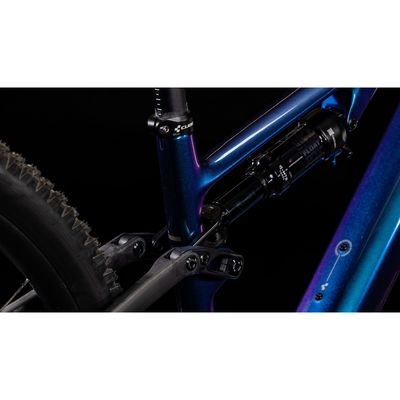

• Shock: Fox Float Performance, 210x55mm, Adjustable LSR w/ 2-Pos. Lever
• Shock Hardware: Front: 30x8mm, Rear: DU-Bushing 12,7mm
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
• Stem: Newmen Evolution SL 318.4, 31.8mm
• Handlebar: Newmen Advanced 318.25, Carbon, 780mm
• Grips: ACID Disrupt, Soft Compound
• Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
• Shifters: Shimano XT SL-M8100-IR, Direct Attach
• Brakes: Shimano XT BR-M8120/BR-M8100, Hydr. Disc Brake (203/180)
• Crankset: e*thirteen Helix Race Alloy e*spec Crank, 32T
• Chainring: 32T
• Cassette: Shimano XT CS-M8100, 10-51T
• Gears: 12
• Chain: Shimano CN-M8100
• Wheelset: Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Front Tyre: Schwalbe Nobby Nic, Super Ground, Addix Soft, Kevlar, 2.4
• Rear Tyre: Schwalbe Wicked Will, Super Ground, Addix Speedgrip, Kevlar, 2.4
• Saddle: Natural Fit Nuance SL
• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
• Dropper: YES
• Seatpost Clamp: CUBE Screwlock, 34.9mm
• Engine: Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
• Battery: Bosch CompactTube 400
• Charger: Bosch 4A

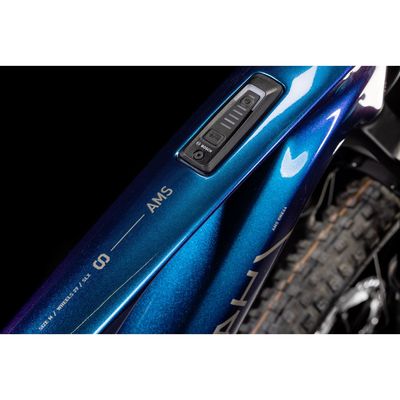

• Remote: Bosch System Control, incl. Mini Remote
• Net Weight (kg): 17,3
• Gross Weight (kg): 22,05
• Max. System Weight (kg): 135

Geometry
