Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB. The ultra-slim battery minimizes weight so you can ride technical trails the way you always dreamed of.

Features

• Lighter weight: EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.
• Advanced cockpit control: RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.

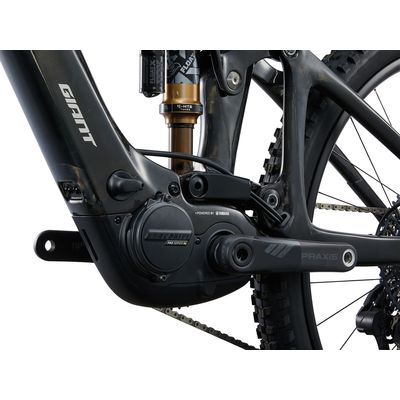

• More power: New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterizes SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.

Specifications

• Motor: Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology
• Controller: Giant RideControl Ergo3, grip integrated remote

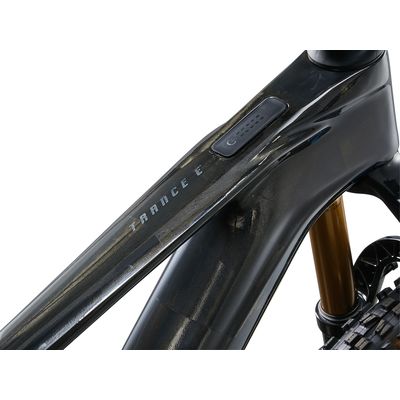

• Display: Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
• Battery: Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
• Charger: Giant EnergyPak 4A smart charger, 60% in 1:45
• Connectivity: Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
• Sizes: S, M, L, XL
• Colours: Gloss Raw Carbon
• Frame: Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system

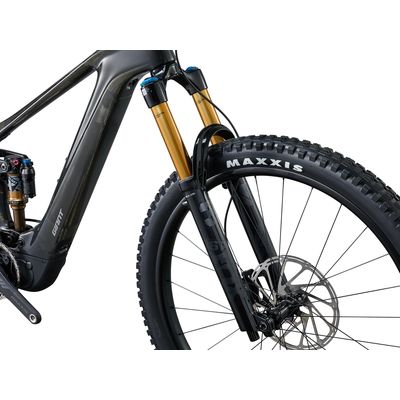

• Fork: Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110

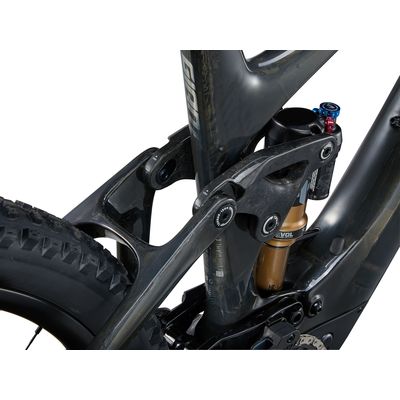

• Shock: Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
• Handlebar: Giant Contact SLR Trail, carbon, 800mm
• Grips: Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
• Stem: Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
• Seatpost: Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
• Saddle: Giant Romero, Neutral
• Pedals: PEDALS NOT SUPPLIED
• Shifters: SRAM AXS Rocker Paddle, wireless electronic shifting 1x12
• Front Derailleur: MRP HD2 co-moulded chain guide
• Rear Derailleur: SRAM GX Eagle Transmission, AXS
• Brakes: SRAM Code R, 4-piston hydraulic disc, 220mm[F], 200mm[R]
• Brake Levers: SRAM Code R
• Cassette: SRAM GX Eagle Transmission, 10-52T, 12-speed
• Chain: SRAM GX Eagle Transmission Flattop Chain, Powerlock
• Crankset: Praxis Carbon e-crank arms (S/M:160, L/XL:165) SRAM Eagle Transmission E-MTB Chainring , Steel 36T
• Bottom Bracket: n/a
• Rims: E-TRX Hookless Tubeless ready Carbon 29 [F] / 27.5 [R] 30mm inner width
• Hubs: E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
• Spokes: -
• Tyres: Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
• Extras: Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
• Lighting: Optional:- Giant Recon series e-bike lights available and direct connectable
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
