Every trail, every steep climb, every thrilling descent. Tested and developed by Giant’s e-bike enduro pros, this updated trail ripper gives you the power to enjoy the best parts of the ride again and again.

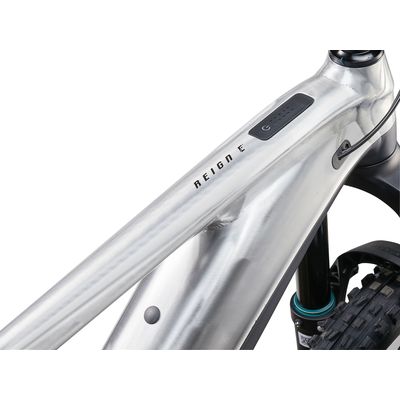

A 29-inch front wheel and 27.5-inch rear wheel work together to offer superior handling and agility on technical terrain. The updated frameset features new geometry with a shorter rear end and longer reach. New control units include RideControl Go, which is integrated into the top tube, and RideControl Ergo 3, attached to the handlebar near the grip. A new flip chip feature lets you adjust frame geometry for riding style and terrain.

Features

• Trail technology: Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology boost your capabilities on steep climbs and rugged descents.
• Total control: RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
• Long-lasting power: Climb steep mountains and enjoy fun descents all day long with the downtube-integrated EnergyPak

Specifications

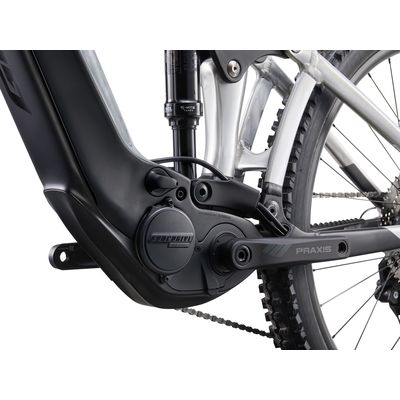

• Motor: Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
• Controller: Giant RideControl Ergo3, grip integrated remote
• Display: Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
• Battery: Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible (exculde S size)
• Charger: Giant EnergyPak 6A smart charger, 60% in 2:15h
• Connectivity: Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
• Sizes: S, M, L, XL
• Colours: Gloss Raw Aluminium / Black
• Frame: ALUXX SL-grade aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, Universal Derailleur Hanger

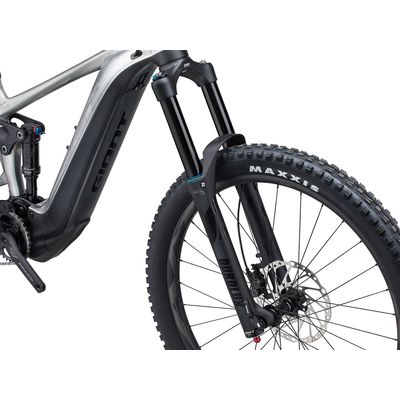

• Fork: SR Suntour Durolux 38 Boost EQ, 170mm travel, 44mm offset, RC2, 15LH-110

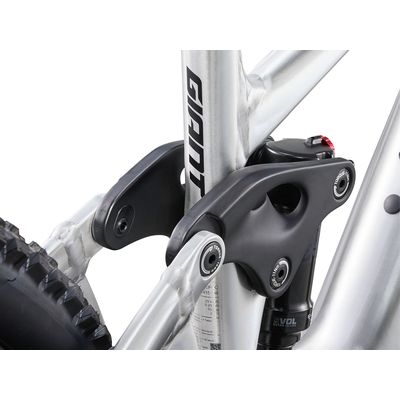

• Shock: Fox Float Performance, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned, recommended sag: 30%
• Handlebar: Giant Contact Trail, 35x800mm
• Grips: Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
• Stem: Giant Contact SL 35
• Seatpost: Giant Contact Switch, dropper, 30,9mm (S:125/M:150/L:170/XL:200)
• Saddle: Giant Romero Trail
• Pedals: Flatpedal
• Shifters: Shimano Cues LinkGlide 1x11
• Front Derailleur: MRP 1X HD2 custom co-molded chain guide
• Rear Derailleur: Shimano Cues LinkGlide
• Brakes: Shimano BR-MT420, 4-piston, hydraulic disc, 203mm
• Brake Levers: Shimano Deore, I-spec EV
• Cassette: Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
• Chain: Shimano LinkGlide, CN-LG500
• Crankset: Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-HD forged crankarm set (S/M:160mm, L/XL:165mm)
• Bottom Bracket: n/a
• Rims: Giant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R]
• Hubs: Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm HG Drive Body Thru-axle
• Spokes: Sapim E-Lite [R] Race [F], e-bike optimised
• Tyres: Maxxis Minion DHF 29x2.6"" foldable, Tubeless, EXO+, 3C MaxxTerra[F] Maxxis High Roller II 27.5x2.5"" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
• Extras: Tubeless kit (liquid, valves, levers, manual, tool)
• Lock: Torx 25 Battery Lock with built-in Torque limiter
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
