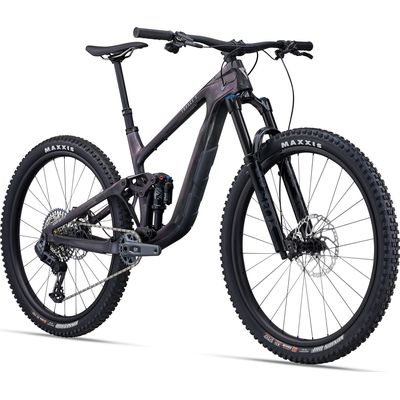

Giant Trance X Advanced 1 Full Suspension Mountain Bike
Giant Trance X Advanced 1 Full Suspension Mountain Bike
Sold-Out
Float up technical climbs and sail down chunky descents. This all-new, full-composite trail bike gives you 140mm of smooth Maestro rear suspension and all sorts of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.
This full-composite frame is engineered for 135mm of rear travel and 150mm up front. The Maestro rear suspension has a two-stage adjustable Advanced Forged Composite rocker arm with a trunnion-mount shock. A flip chip lets you choose either low or high frame geometry settings, which adjusts the headtube and seattube angle, along with the bottom bracket drop, to fine tune handling for your riding style and terrain.
Features

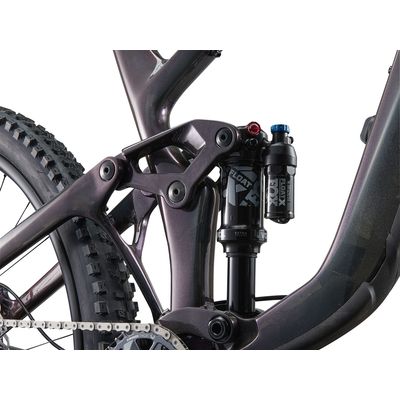

- More Travel: New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.
- Adjustable trail geometry: A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.
- Rear wheel options: All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimizes stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance. Some riders favor this “mullet” setup for riding steep, technical terrain.
Specifications
- Sizes: S, M, L, XL
- Colours: Gloss Arctic Light/Chrome
- Frame: Advanced-grade composite front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle
- Fork: Fox 36 Performance Elite, GRIP2 damper, 44mm offset, 150mm, 15x110 Kabolt X, custom tuned for Giant
- Shock: Fox Float X Performance Elite, 185/52.5, custom tuned for Giant
- Handlebar: Giant Contact SLR TR35, 780x35mm, 20mm rise
- Grips: Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
- Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
- Seatpost: Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
- Saddle: Giant Romero SL
- Pedals: PEDALS NOT SUPPLIED
- Shifters: SRAM AXS, 1x12
- Front Derailleur: N/A
- Rear Derailleur: SRAM GX Eagle Transmission AXS
- Brakes: Shimano Deore XT BR-MT8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
- Brake Levers: Shimano Deore XT BL-M8100
- Cassette: SRAM GX-1275, 10x52
- Chain: SRAM GX Eagle
- Crankset: SRAM GX, 30t, 55mm chainline
- Bottom Bracket: SRAM DUB, Press Fit
- Rims: Giant TRX, 29" hookless carbon wheelsystem, 30mm IW, 40mm OW, 22mm H, 72t POE, 28 SP spokes, DBL technology, XD driver body
- Hubs: [F] Giant Alloy, 6 Bolt [R] TRX HE, Alloy, 72 Pawl Driver, 6 bolt
- Spokes: Sapim, 28, straight pull, DBL Technology
- Tyres: [F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless
- Extras: Factory tubeless set up, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector
- Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

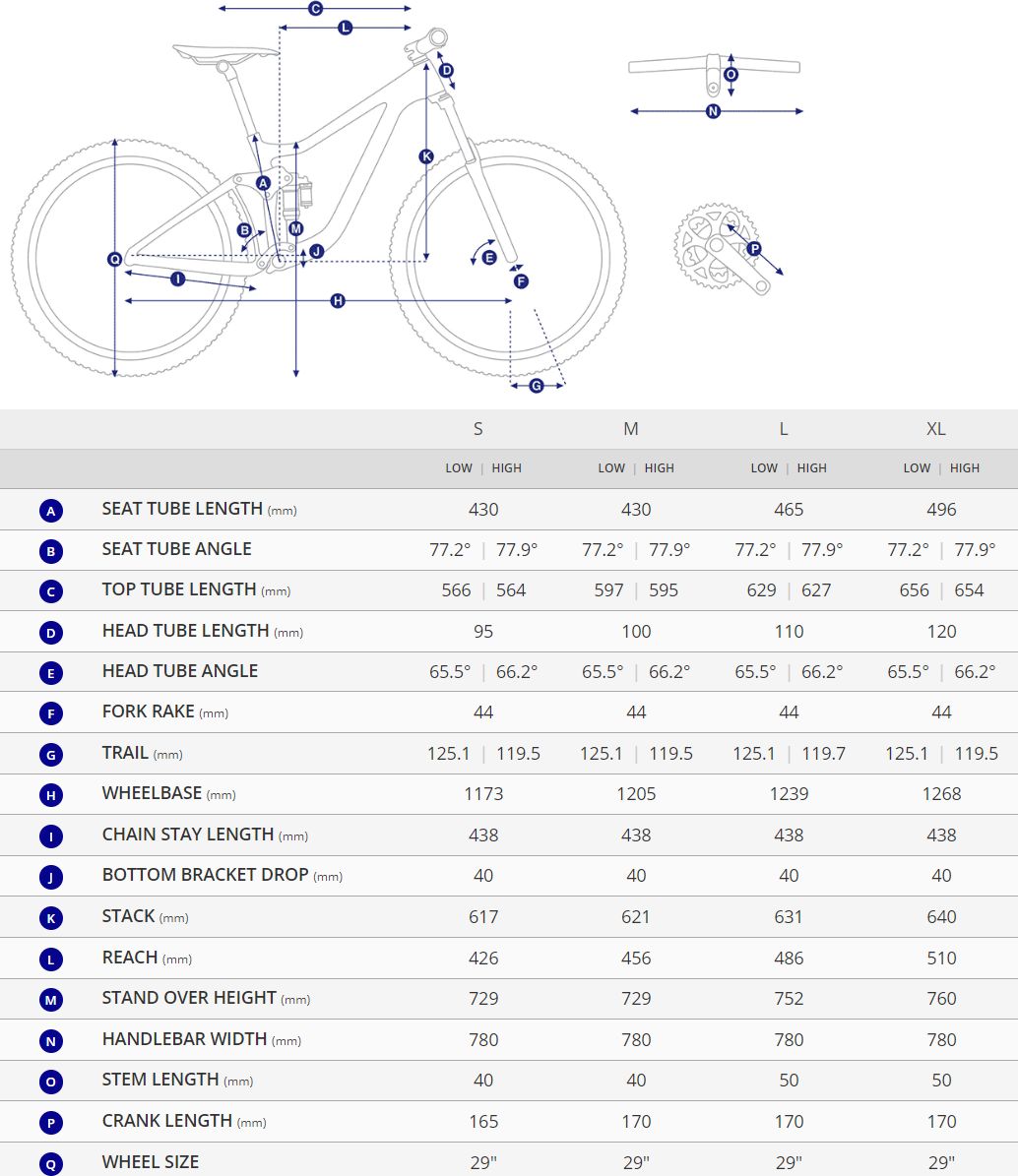

Geometry
Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
This could include but not limited to specification or colour
Manufacturer's Code: 9109004104, 9109004105, 9109004107, 9109004108
Barcodes: 4711291018747, 4711291018754, 4711291018761, 4711291018778
