Find your flow on technical trails. With adjustable geometry, the option to change rear wheel size, and a new 140mm Maestro rear suspension setup, this versatile trail bike steamrolls singletrack with confidence and control.

The all-new frameset is engineered with a super strong and lightweight ALUXX SL aluminum chassis and updated Maestro suspension system. With 140mm of rear travel and a 150mm fork, it gobbles up rocks, roots and ruts with ease. The frame is equipped with two, three-position flip chips for the ultimate in adjustability. The rear flip chip, located on the Maestro rocker arm, lets you change frame geometry and switch the standard 29-inch rear wheel to 27.5 if you prefer. A second flip chip at the headset provides 10mm of reach adjustment. New, integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage, and protection on the down tube prevents damage from trail debris and transportation.

Features

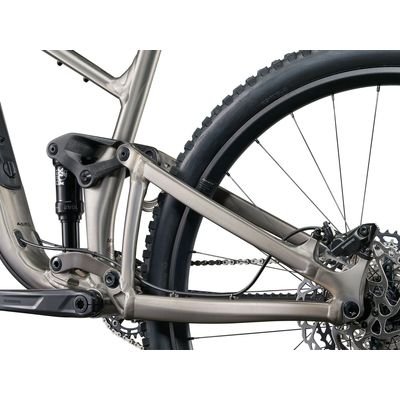

• Updated suspension: A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.

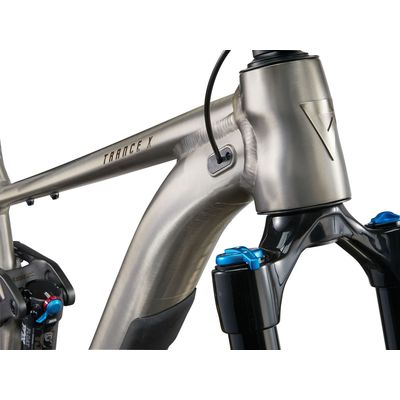

• Adjustable trail geometry: A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.
• Rear wheel options: All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock 29-inch rear wheel optimizes stability and roll-over capabilities, while a 27.5 delivers a more agile, snappier feel and more saddle-to-tire clearance in the rear. Some riders favor this “mullet” setup for riding steep, technical terrain.

Specifications

• Sizes: S, M, L, XL
• Colours: Smoke Metal/Chrome
• Frame: ALUXX SL-grade aluminium front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle
• Fork: Fox 36 Float Performance, GRIP damper, 44mm offset, 150mm, 15x110 Kabolt, custom tuned for Giant
• Shock: Fox Float Performance, 185/52.5, custom tuned for Giant
• Handlebar: Giant Contact TR35, 780x35mm, 20mm rise
• Grips: Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
• Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
• Seatpost: Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
• Saddle: Giant Romero
• Pedals: PEDALS NOT SUPPLIED
• Shifters: Shimano SLX SL-M7100, 1x12
• Front Derailleur: N/A
• Rear Derailleur: Shimano SLX RD-M7100
• Brakes: Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
• Brake Levers: Shimano Deore BL-MT501
• Cassette: Shimano SLX, 10x51
• Chain: KMC X-12
• Crankset: Shimano M512, 30t, 55mm chainline
• Bottom Bracket: Shimano Press Fit
• Rims: Giant TRA, 29" hookless aluxx wheelsystem, 30mm IW, 40mm OW, 21mm H,72t POE, 28 SP spokes, DBL technology, MS driver body
• Hubs: [F] Giant Alloy, 6 Bolt [R] TRA HE, Alloy, 72 Pawl Driver, 6 bolt
• Spokes: Sapim, 28, straight pull, DBL Technology
• Tyres: [F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless
• Extras: Factory tubeless set up, 2.5" max tyre size, 34t max chainring size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
