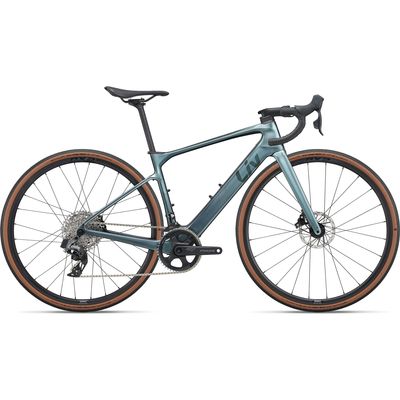

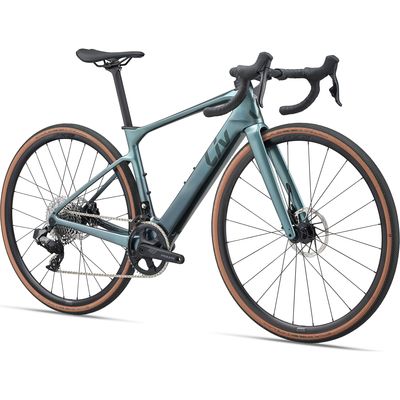

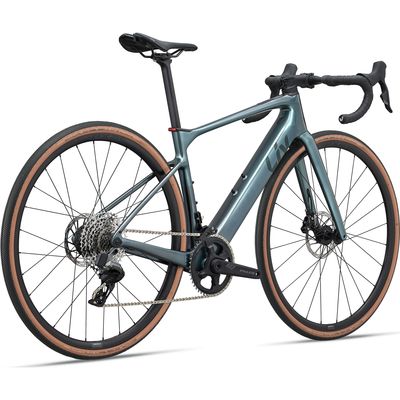

The design of the Avail Advanced E+ Elite stealthily conceals its potent electric capabilities. A compact rear hub motor, lightweight carbon frame and fork, hidden controls, and internal cable routing is the epitome of a beautiful, high-end road bike that looks fast—even when it’s not moving.

Features

• A NATURAL RIDE: It looks like an analog road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.
• MAXIMUM MILES. MINIMUM FATIGUE: The Avail Advanced E+ Elite provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.
• DELIVERING POWER & SPEED: The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30 Nm which is comparable to 75 Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 45 km/h / 28 mph (US), 32 km/h (Canada), and 25 km/h (in other regions worldwide).
• How far can I expect to ride on a single battery charge?: The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

Specifications

• Motor: SyncDriveMove Plus Hub drive 75Nm max
• Controller: Mode support switch from SRAM Blips
• Display: Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
• Battery: EnergyPak Smart 400Wh by Panasonic, Aluminium casing with highest safety standard (UL2271, EN50604), CO2 Neutral production, 2300 charging cycles. EnergyPak Plus 200 range extender compatible
• Charger: Giant EnergyPak 4A smart charger, 60% in 1:45
• Connectivity: Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
• Sizes: XS, S, M, L
• Colours: Gloss Silver Pine

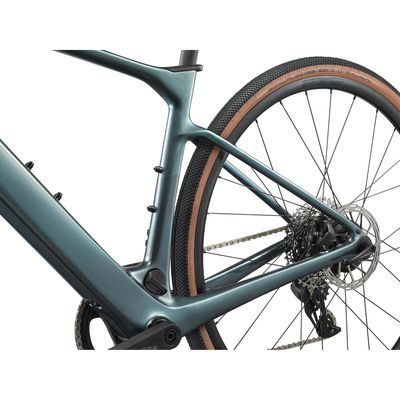

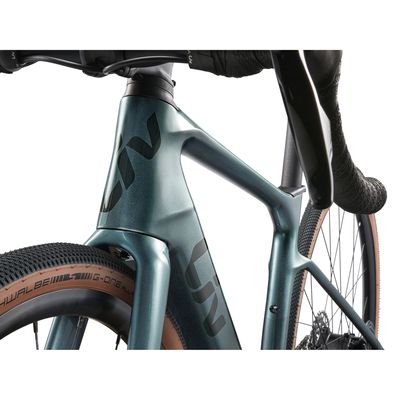

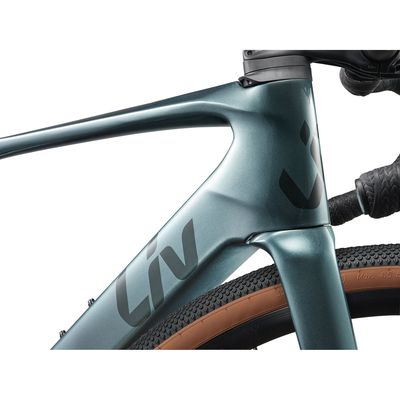

• Frame: Advanced-grade composite,12x145 thru-axle

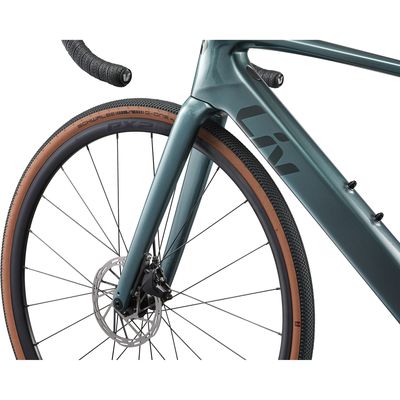

• Fork: Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
• Shock: -

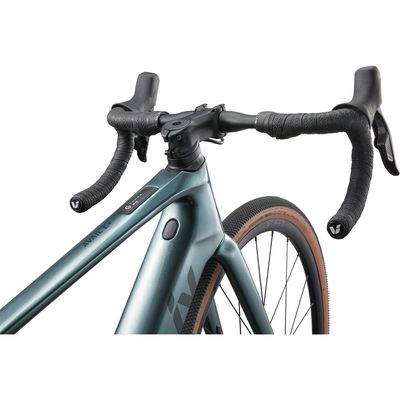

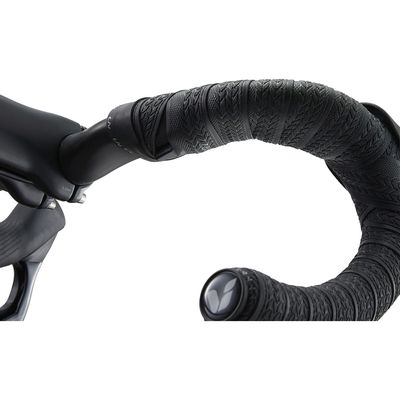

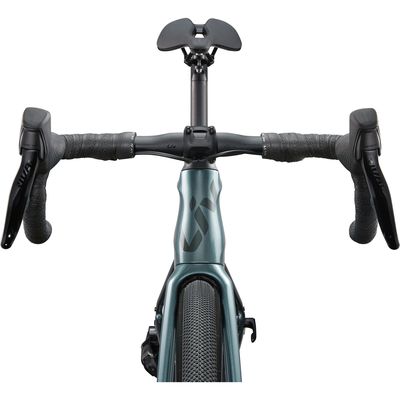

• Handlebar: Liv Contact SL D-Fuse 31.8 alloy
• Stem: Contact SL Aerolight 31.8 alloy
• Seatpost: Giant D-Fuse, Composite, 14mm offset
• Saddle: Liv Approach
• Pedals: -
• Shifters: Sram Rival eTap AXS 1x12
• Front Derailleur: -
• Rear Derailleur: Sram Rival XPLR eTap AXS
• Brakes: Sram Rival eTap HRD, Paceline 160mm center-lock [F] 160mm 6-bols [R]
• Brake Levers: Sram Rival eTap AXS HRD
• Cassette: Sram Apex XPLR XG-1251, 10x44, 12-speed
• Chain: Sram Rival 12-speed

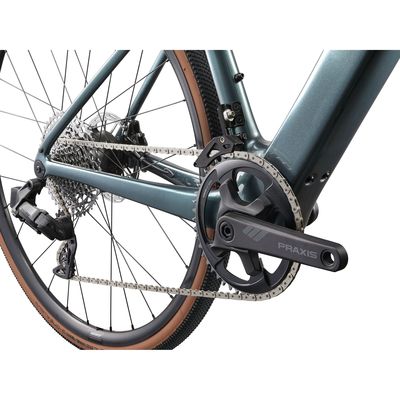

• Crankset: Sram X-SYNC 46T BCD107 chain ring Praxis E crank Alloy ISIS
• Bottom Bracket: Giant E+ System BBSS
• Rims: Giant P-X2 Alloy Disc Wheel System, Tubeless Ready, 19mm inner width, 12mm thru-axle, w/ Sapim spoke E-Light [R] Race [F], e-bike optimised
• Spokes: Sapim spoke E-Light [R] Race [F], e-bike optimised
• Tyres: SCHWALBE G-ONE ALLROUND Perf, RaceGuard, Brown side-wall 700x35C 67EPI Tubeless

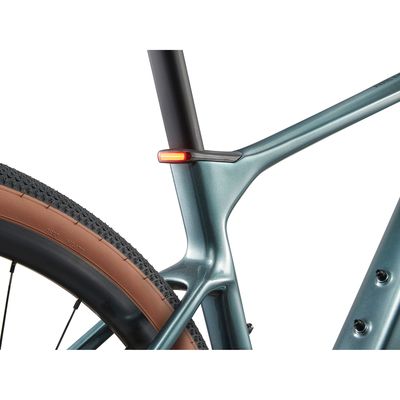

• Lighting: Seatpost clamp integrated tail light
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
