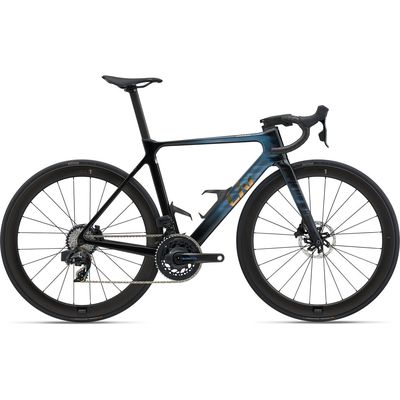

From the stage race breakaway to the final criterium lap, the EnviLiv is made to be out front. We’ve designed our signature sprinter for optimized aerodynamic performance, greater stiffness-to-weight advantage, and maximum trophies.

Features

• Optimized Aerodynamics: In our pursuit of maximum power and efficiency, we analyze how the bike and rider experience airflow at every speed and direction, both on the computer and in the wind tunnel. The new EnviLiv features truncated ellipse airfoil tube shapes and the Liv Contact SL handlebar, with flattened tops and deeper drops, for reduced drag and added control, and better overall aero performance.
• Sprinting Efficiency: Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight. But the EnviLiv has found the sweet spot, with a new Advanced-grade composite frame and fork—resulting in 292 grams of weight savings over the previous generation.
• Seamless Integration: When every second matters, so does every detail. So we developed a way to route cables through the handlebar, stem, and frame, which improves aero performance, and also makes it easier to disassemble your bike for travel and maintenance. Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, further reducing drag.

Specifications

• Sizes: XS, S, M
• Colours: Gloss Ocean Twilight/Carbon Smoke/Gold Chrome
• Frame: Advanced-grade composite, 12x142mm thru-axle, disc
• Fork: Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
• Shock: N/A
• Handlebar: Liv Contact SLR Aero, 31.8mm
• Grips: Liv Stratus Elite 2.0
• Stem: Giant Contact SL Aero
• Seatpost: Giant Vector, composite
• Saddle: Liv Alcara SL
• Pedals: PEDALS NOT SUPPLIED
• Shifters: SRAM Force eTap AXS 2x12
• Front Derailleur: SRAM Force eTap AXS
• Rear Derailleur: SRAM Force eTap AXS
• Brakes: SRAM Force eTap AXS hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
• Brake Levers: SRAM Force eTap AXS hydraulic
• Cassette: SRAM Force, 12-speed, 10x33
• Chain: SRAM Force D1
• Crankset: SRAM Force D2 DUB, 35/48 with power meter
• Bottom Bracket: SRAM, press fit
• Rims: Giant SLR 1 50 Carbon Disc WheelSystem, [F] 50mm, [R] 50mm
• Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
• Spokes: SAPIM CX-Ray
• Tyres: CADEX Race 25, tubeless, 700x25c (26.5mm), folding
• Extras: Out front computer mount, two bottle cages, factory tubeless set up
• Max Tire Clearance: 32mm
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
