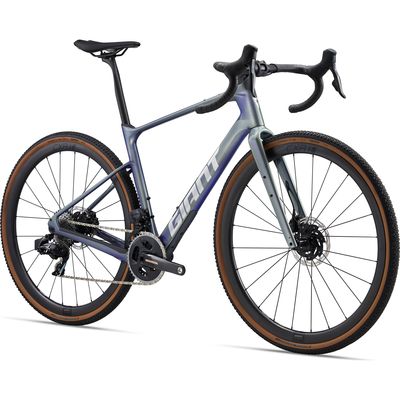

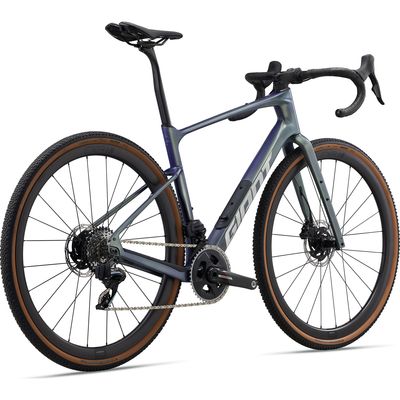

For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective: Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.

With a new composite frameset featuring fully integrated cable housing, this lively gravel bike helps you push your limits on variable terrain. The D-Fuse seatpost and handlebar absorb shocks and vibrations, giving you greater control and less fatigue. A flip chip on the all-new, full composite rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or a 30.9mm round seatpost or dropper post. Details include a new internal storage compartment on the down tube and additional frame mounts to add bottle cages, racks and other accessories.

Features

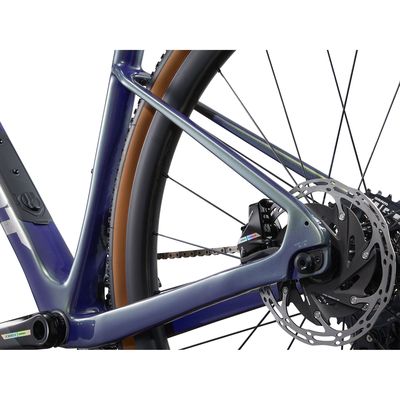

• FAST AND VERSATILE: An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

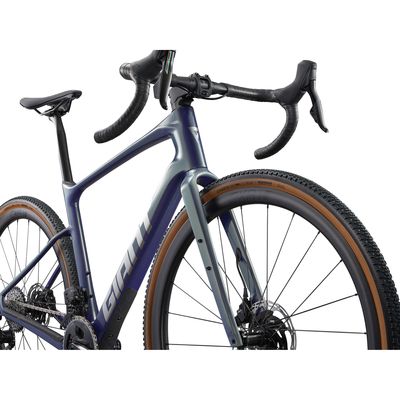

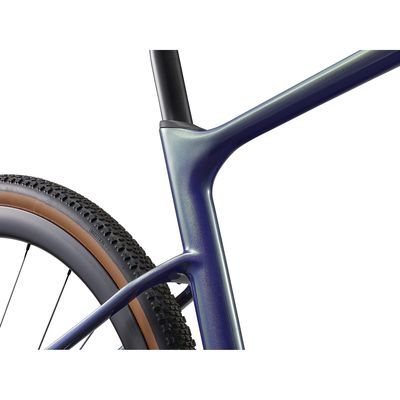

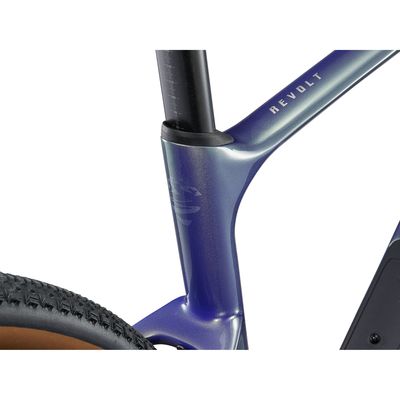

• TUNED COMPLIANCE: Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.

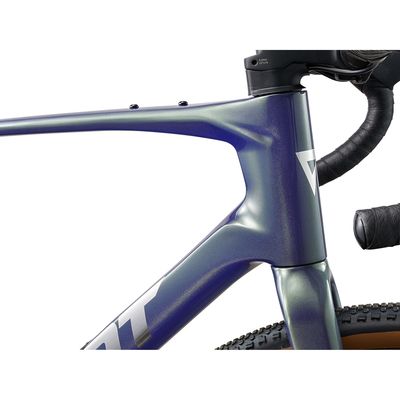

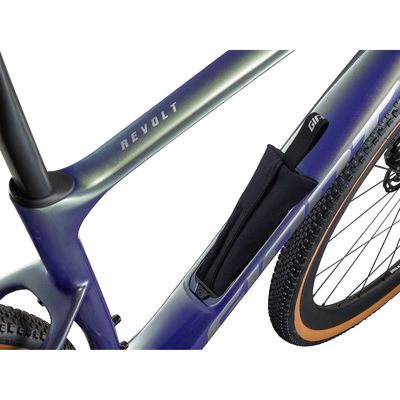

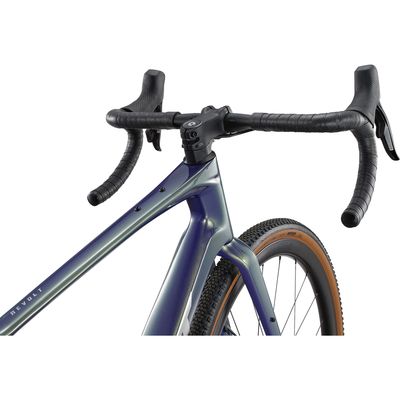

• SMART INTEGRATION: Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the down tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.

Specifications

• Sizes: S, M, M/L, L, XL
• Colours: Gloss Interstellar/Chrome
• Frame: Advanced-grade composite
• Fork: Advanced SL-grade composite

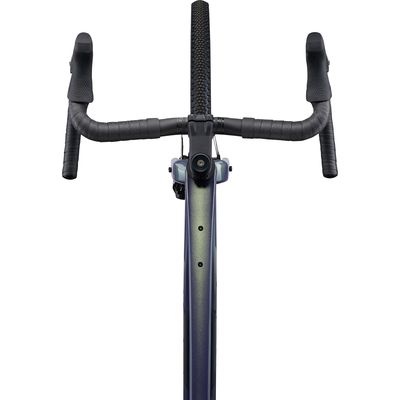

• Handlebar: Giant Contact SLR XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips: Stratus Lite 3.0
• Stem: Giant Contact AeroLight, -10 degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost: Giant D-Fuse SLR, composite
• Saddle: Giant Grit SL
• Pedals: Not included
• Shifters: SRAM Force eTap AXS, 2x12
• Front Derailleur: SRAM Force eTap AXS
• Rear Derailleur: SRAM Force eTap AXS
• Brakes: SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm
• Brake Levers: SRAM Force eTap AXS hydraulic
• Cassette: SRAM Force, 12-speed, 10x36
• Chain: SRAM Force D1

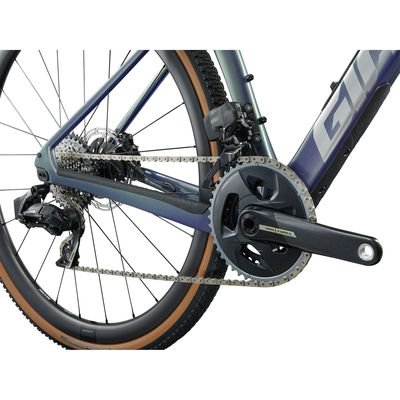

• Crankset: SRAM Force D2 DUB, 30/43
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
• Hubs: [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
• Spokes: Sapim CX-Ray
• Tyres: CADEX GX, 700x40c, tubeless
• Extras: tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
