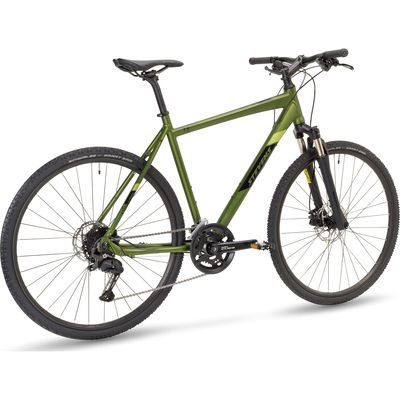

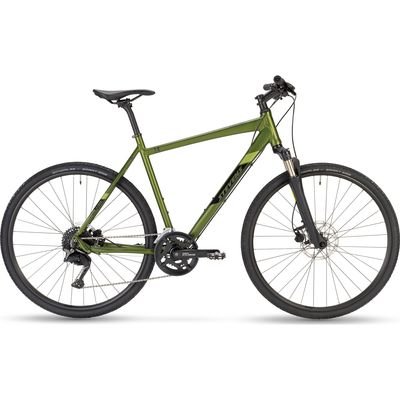

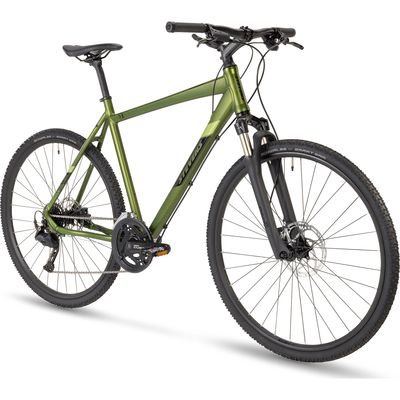

The 5X comes across as sleek yet comfortable. With our lightweight, triple end-reinforced aluminium frame and the finely responsive suspension fork. The new Shimano CUES Linkglide groupset for smooth gear changes. The Schwalbe tyres whiz smoothly over any solid surface – and nothing can stop them except the powerful hydraulic brakes with their shiny discs.

Features

• Agile crosser with reliable disc brakes
• Responsive SR Suntour NX1 suspension fork w/ lockout
• Strong Tektro hydraulic disc brakes
• Reliable Shimano CUES U4000 2x9-speed drivetrain
• Fast, gripping Schwalbe Smart Sam tires

Specifications

Frame

• Aluminium 6061 TB
• O.L.D.: 135 mm
• Brake: IS disc
• BB: BSA 73 mm
• Cable routing: external
• Fender + rack mounts

Fork

• SR Suntour NX1-Coil LO
• Travel: 63 mm
• Coil spring
• Lockout
• Steerer 1 1/8"
• O.L.D.: 100 mm
• Brake: postmount disc 6"
• Fender mounts

Headset

• STEVENS AH 1 1/8"
• Upper bearing cup: ZS44/28.6
• Lower bearing cup: ZS44/30

Brake front

• Tektro HD-T275
• Hydraulic disc brake

Brake rear

• Tektro HD-T275
• Hydraulic disc brake

Brake disc front

• Tektro TR180-35
• Rotor size: 180 mm
• Center Lock

Brake disc rear

• TR160-35
• Rotor size: 160 mm
• Center Lock

Crankset

• Shimano CUES U4000
• Shimano FC-U4010-2
• 46-30 T
• 2-Piece

Derailleur front

• Shimano CUES U4000
• FD-U4000-L
• 2-speed

Derailleur rear

• Shimano CUES U4000 Shadow
• RD-U3020-SGS
• 9-speed
• Total capacity: 41 T

Chain

• Shimano CN-LG500
• LINKGLIDE

Cassette

• Shimano CS-LG300-9
• 9-speed
• Combination: 11-13-15-17-20-23-26-30-36 T

Pedals

• ATB Pro Reflex

Hubs rear

• Formula CL-52
• Axle: QR5x135 mm

Hubs front

• Formula CL-51
• Axle: QR5x100 mm

Rims

• Oxygen RM-M19
• ETRTO: 19 x 622

Tires

• Schwalbe Smart Sam Active-Line
• Tire size: 42-622
• SBC compound
• KevlarGuard

Hanliebar

• Oxygen Driver
• Wibh: 640 mm
• Backsweep: 9°
• Rise: 12 mm
• Clamp: 31.8 mm

Stem

• Oxygen Driver
• Hanliebar clamp: 31.8 mm
• Angle: 17°

Saddle

• Oxygen Havoc

Seatpost

• Oxygen Driver
• Length: 350 mm
• Diameter: 27.2 mm
• Insertion depth: min. 100 mm

Shift lever left

• Shimano CUES U4000
• SL-U4000-L
• 2-speed

Shift lever right

• Shimano CUES U4000
• SL-U4000-9R
• 9-speed

Brake lever

• Tektro HD-T275
• 3 finger

Weight

• 13.9 kg

Max. Rider weight

• 130 kg

Color(s)

• Olive

Sizes

• HT 48, 52, 55, 58, 61 cm
