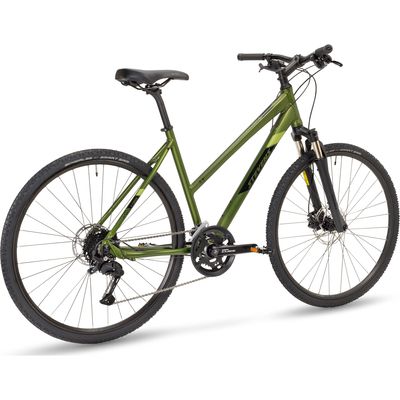

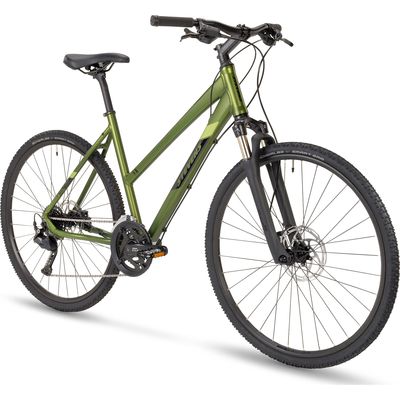

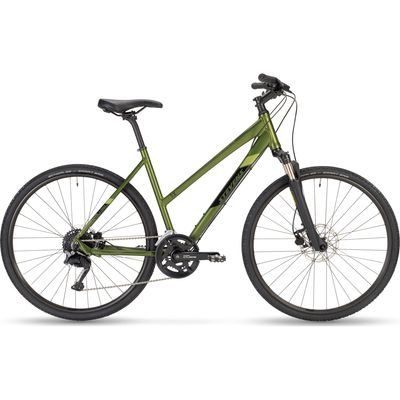

The 5X comes across as sleek yet comfortable. With our lightweight, triple end-reinforced aluminium frame and the finely responsive suspension fork. The new Shimano CUES Linkglide groupset for smooth gear changes. The Schwalbe tyres whiz smoothly over any solid surface – and nothing can stop them except the powerful hydraulic brakes with their shiny discs.

Features

• Agile crosser with reliable disc brakes
• Responsive SR Suntour NX1 suspension fork w/ lockout
• Strong Tektro hydraulic disc brakes
• Reliable Shimano CUES U4000 2x9-speed drivetrain
• Fast, gripping Schwalbe Smart Sam tires

Specifications

Frame

• Aluminium 6061 TB
• O.L.D.: 135 mm
• Brake: IS disc
• BB: BSA 73 mm
• Cable routing: external
• Fender + rack mounts

Fork

• SR Suntour NCX-D LO
• Travel: 63 mm
• Coil spring
• Lockout
• Steerer 1 1/8"
• O.L.D.: 100 mm
• Brake: postmount disc 6"
• Fender mounts

Headset

• STEVENS AH 1 1/8"
• Upper bearing cup: ZS44/28.6
• Lower bearing cup: ZS44/30

Brake front

• Tektro HD-T275
• Hydraulic disc brake

Brake rear

• Tektro HD-T275
• Hydraulic disc brake

Brake disc front

• Shimano SM-RT30
• Rotor size: 180 mm
• Center-Lock

Brake disc rear

• Shimano SM-RT30
• Rotor size: 160 mm
• Center-Lock

Crankset

• Shimano FC-T4010-8
• 48-36-26 T
• BB type: BSA 73 mm / Octalink (axle length: 126 mm)
• Chainguard

Derailleur front

• Sunrace FDM924
• 3-speed

Derailleur rear

• Sunrace RDM91
• 8/9-speed
• Total capacity: 40 T

Chain

• Shimano CN-HG53

Cassette

• Shimano CS-HG201
• 9-speed
• Combination: 11-13-15-17-19-21-24-28-32 T

Pedals

• ATB Alu Comp Reflex

Hubs rear

• Shimano FH-M3050
• Axle: QR10x135 mm

Hubs front

• Formula CL-25
• Axle: QR9x100 mm

Rims

• Oxygen RM-M19
• ETRTO: 19 x 622

Tires

• Schwalbe Smart Sam Active-Line
• Tire size: 42-622
• SBC compound
• KevlarGuard

Hanliebar

• Oxygen Driver
• Wibh: 640 mm
• Backsweep: 9°
• Rise: 12 mm
• Clamp: 31.8 mm

Stem

• Oxygen Driver
• Hanliebar clamp: 31.8 mm
• Angle: 17°

Saddle

• Oxygen Havoc

Seatpost

• Oxygen Driver
• Length: 350 mm
• Diameter: 27.2 mm
• Insertion depth: min. 100 mm

Shift lever right

• Sunrace DLM903
• 9-speed

Brake lever

• Tektro HD-T275
• 3 finger

Weight

• 13.9 kg

Laden weight

• 130 kg

Color(s)

• Olive

Sizes

• G 48, 52, 55, 58, 61 cm

Geometry
