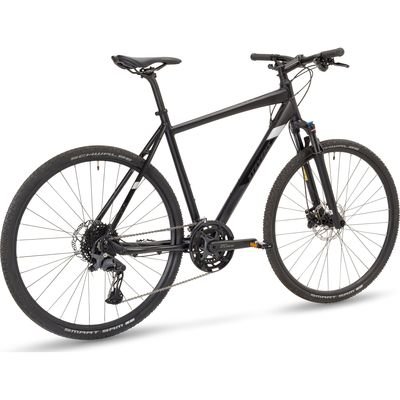

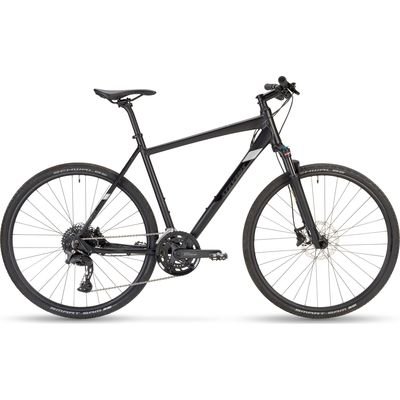

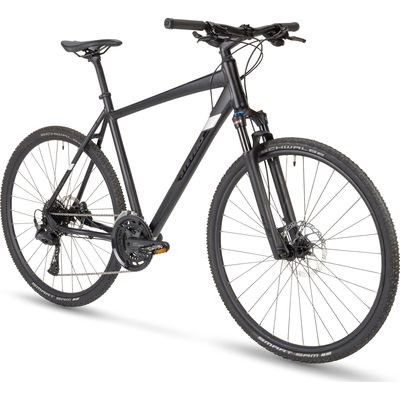

Predictable yet light-footed. This is how the STEVENS 6X shows itself on sporty tours. The lightweight aluminium frame with its sporty, comfortable geometry plays a major role in this. High-quality components such as the Shimano Deore disc brakes or the new CUES 2x10-speed shifting group round off a harmonious overall package.

Features

• Well-balanced disc brake crosser with high-quality specification
• Triple butted aluminium frame with comfort features in 9 sizes
• Shimano CUES U600 Linkglide 2x10-speed drivetrain
• SR Suntour suspension fork with oil damping and sturdy 30 mm stanchions
• Fast, gripping Schwalbe Smart Sam tires

Specifications

Frame

• Aluminium 6061 TB
• O.L.D.: 135 mm
• Brake: IS disc
• BB: BSA 73 mm
• Front derailleur mount: clamp
• Cable routing: internal (shifting)/external (brake)
• Fender rack mounts

Fork

• SR Suntour NRX-D LO
• Travel: 63 mm
• Coil spring
• Lockout
• Steerer 1 1/8"
• O.L.D.: 100 mm
• Brake: postmount disc 6"
• Fender mounts

Headset

• STEVENS AH 1 1/8"
• Upper bearing cup: ZS44/28.6
• Lower bearing cup: ZS44/30

Brake front

• Shimano BR-MT410
• Hydraulic disc brake
• 2 pistons

Brake rear

• Shimano BR-MT410
• Hydraulic disc brake
• 2 pistons

Brake disc front

• Shimano SM-RT54
• Rotor size: 180 mm
• Center-Lock

Brake disc rear

• Shimano SM-RT54
• Rotor size: 160 mm
• Center-Lock

Crankset

• Shimano CUES U6000
• Shimano FC-U6000-2
• 46-30 T
• 2-Piece

Derailleur front

• Shimano CUES U6000
• FD-U6010-LL3
• 2-speed

Derailleur rear

• Shimano CUES U6000 Shadow
• RD-U6020-10 SGS
• 10-speed
• Total capacity: 44 T

Chain

• Shimano CN-LG500
• LINKGLIDE

Cassette

• Shimano CS-LG300-10
• 10-speed
• Combination: 11-13-15-17-20-23-26-30-34-39 T

Pedals

• ATB Pro Reflex

Hubs rear

• Formula CL-26
• Axle: QR9x135 mm

Hubs front

• Formula CL-25
• Axle: QR9x100 mm

Rims

• Oxygen COMP-D A19
• ETRTO: 19 x 622

Tires

• Schwalbe Smart Sam Performance
• Tire size: 42-622
• ADDIX compound

Hanliebar

• Oxygen Driver
• Wibh: 640 mm
• Backsweep: 9?
• Rise: 12 mm
• Clamp: 31.8 mm

Stem

• Oxygen Driver
• Hanliebar clamp: 31.8 mm
• Angle: 6?

Saddle

• Oxygen Havoc

Seatpost

• Oxygen Driver
• Length: 350 mm
• Diameter: 27.2 mm
• Insertion depth: min. 100 mm

Shift lever left

• Shimano CUES U6000
• SL-U6000-L
• 2-speed

Shift lever right

• Shimano CUES U6000
• SL-U6000-10R
• 10-speed

Brake lever

• Shimano BL-MT402-3A

Weight

• 12.9 kg

Max. Rider weight

• 130 kg

Color(s)

• Stealth Black

Sizes

• HT 48, 52, 55, 58, 61, 64 cm

Geometry
