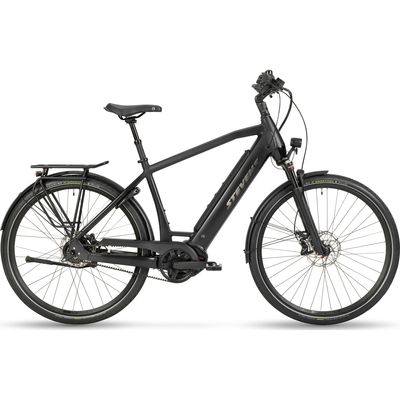

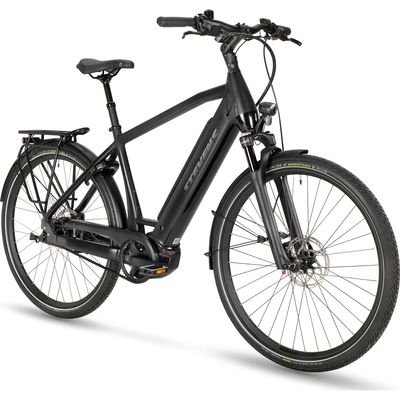

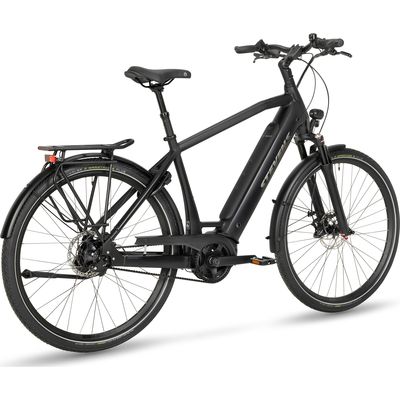

For the E-14, STEVENS engineers have combined all their know-how and the finest components to create an E-bike in a class of its own. 85 Newton meters of Bosch CX power meet one of the most robust hub gears on the market: the Rohloff Speedhub. Its electronic actuation is fully integrated into the motor management to realize the fastest, smoothest gear changes. So much forward drive is stopped by a high-quality Tektro 4-piston brake system front and rear. For unclouded riding comfort provide, among other things, the harmonious STEVENS geometry, a sensitive suspension fork and a suspended and even lowerable seatpost. And it is really low maintenance by the innovative Gates CDX carbon drive belt, which puts conventional chain drives in terms of simplicity and longevity easily in the shade.

Features

• High-end pedelec with electronic 14-speed gear hub, automatic downshift and Gates carbon drive
• Powerful Bosch G4 Performance Line CX system (250 W/85 Nm) plus integrated 625 Wh battery
• Stable Tektro 4/4 piston disc brakes
• Wide tires adjustable seatpost = extra comfort!
• Highly functional commuter specs to include LED front beam (120 Lux!)

Specifications

• Frame: Aluminium 6061
• Fork: SR Suntour Mobie25-Air LOR
• Headset: STEVENS AH Taper 1 1/8"-1 1/2"
• Brake front: Tektro HD-T737
• Brake rear: Tektro HD-T737
• Brake disc front: Tektro TR180-45A
• Brake disc rear: Rohloff
• Crankset: Oxygen E-Scorpo
• Chainring: Gates CDX chainring
• Belt: Gates CDX Center Track Carbon Drive Belt
• Derailleur rear: Rohloff Speedhub 500/14 CC DB
• Cassette: Gates CDX Center Track sprocket
• Pedals: ATB Alu Pro Reflex
• Engine: Bosch G4 Performance Line CX
• Battery: Bosch PowerTube 625
• Charger: Bosch 4A charger
• Hubs front: Shimano Deore XT
• Rims: Oxygen RM-26 Disc SL
• Tires: Schwalbe Marathon E-Plus Performance
• Handlebar: Oxygen E-Scorpo
• Stem: Oxygen Versa II, adjustable
• Saddle: Selle Royal ON Female
• Seatpost: Oxygen E-Scorpo DPR-S-E
• Brake lever: Tektro HD-T737
• Display: Bosch Kiox
• Headlight: B M IQ-XM
• Taillight: Supernova M99 TL 2 Pure
• Carrier: Racktime Supernova RTA rear rack
• Mudguards: SKS mudguards
• Kickstand: Pletscher Comp kickstand
• Bell: STEVENS D85 bell
• Weight: 28.7 kg
• Max. Rider's weight: 140 kg
• Color(s): Stealth Black
• Sizes: F 46, 52, 56 cm

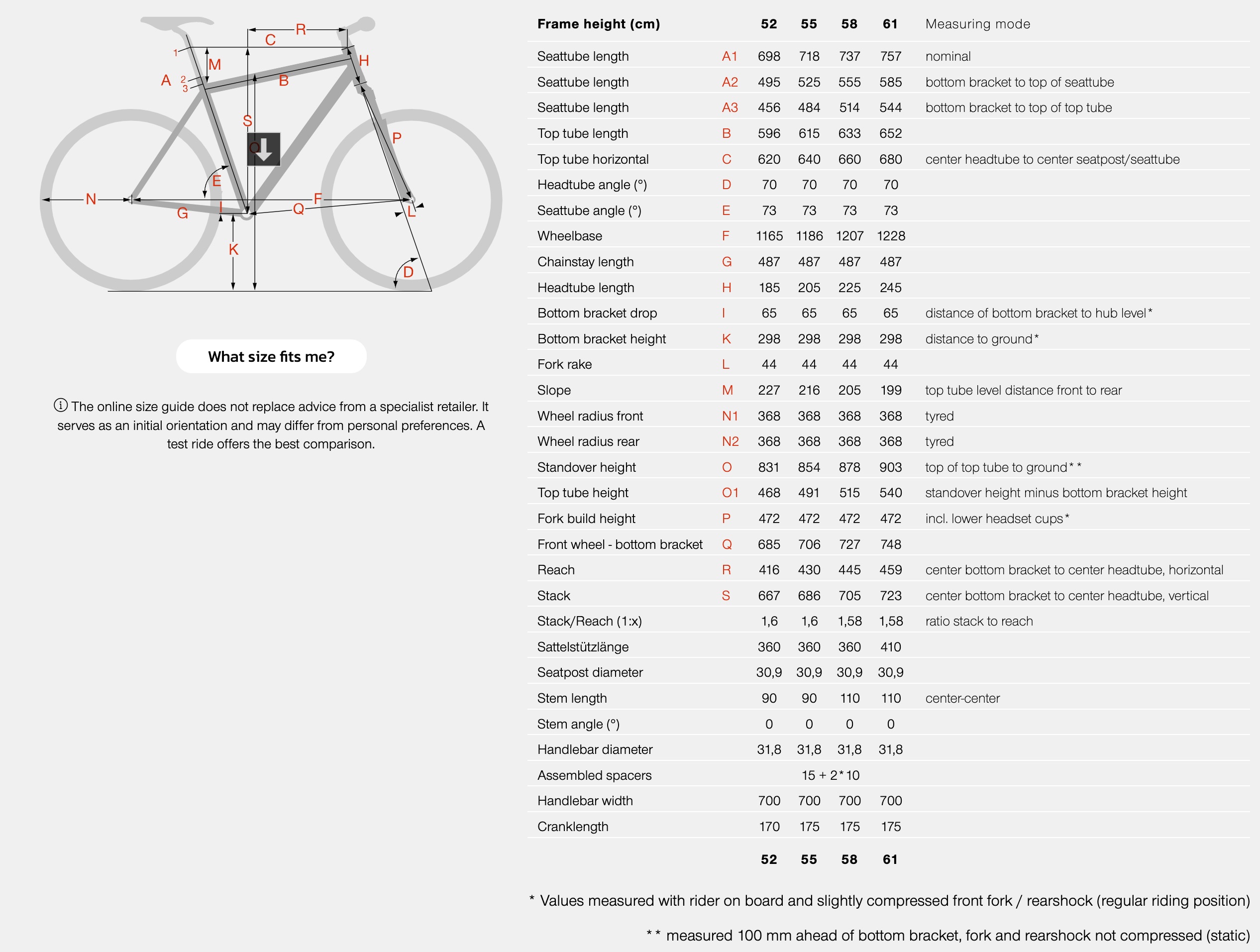

Geometry
