Our premium pedelec E-14 Plus (with approval for a total weight of 180 kilograms!) combines some of the best components that can be used to create an e-bike. Starting with the proven and powerful Bosch Performance Line CX drive with 85 Nm torque or the Bosch PowerPack battery with an incredible 800 Wh capacity. The integration of Bosch's electronic shifting solution eShift allows fast and precise gear changes of the 14-speed Rohloff hub gear for a sporty riding experience and high shifting comfort. Short motor throttling during the shifting process supports smooth, synchronised gear changes.

The auto-downshift function enables easy starting, as the system automatically shifts to a lower gear before stopping. For fast acceleration, three gears can be changed at once using the multishift function. The desired cadence or current gear is shown on the display. The equipment of the E-14 Plus is rounded off by a 4-piston brake system with Bosch eBike ABS for high deceleration performance and intuitive braking. Top technology: The high-end lighting from Supernova with high beam function and bright brake light for additional safety in urban traffic.

Features

• Premium E-bike with "Plus" frame for 180 kg permissible total weight
• High-end drivetrain with electronic 14-speed hub gears, automatic start-up system and
• Gates carbon drive belt
• Bosch Performance Line CX Drive Unit with Bosch eShift
• 800 Wh Bosch PowerPack battery for maximum range
• Powerful Magura 4-piston disc brakes with Bosch eBike ABS

Specifications

• Frame: Aluminium 6061
• Fork: SR Suntour Mobie34-Air LOR
• Headset: Acros Blocklock Taper 1 1/8"-1 1/2"
• Brake front: Magura MT C ABS
• Brake rear: Magura MT C ABS
• Brake disc front: Magura MDR-C
• Brake disc rear: Rohloff
• Crankset: Oxygen E-Scorpo
• Chainring: Gates CDX chainring
• Belt: Gates CDX Center Track Carbon Drive Belt
• Derailleur rear: Rohloff Speedhub 500/14 CC DB
• Cassette: Gates CDX R Center Track sprocket
• Pedals: ATB Alu Pro Reflex
• Engine: Bosch G4 Performance Line CX
• Battery: Bosch PowerPack 800
• Charger: Bosch 4A charger
• Hubs front: Strummer M17-3
• Rims: Oxygen RM-T25 Disc
• Tires: Schwalbe Marathon Efficiency Evolution
• Handlebar: Oxygen E-Scorpo
• Stem: Oxygen Versa II, adjustable
• Saddle: Selle Royal ON Female
• Seatpost: Oxygen E-Scorpo DPR-S-E
• Shift lever right: Rohloff E-14 Shifter
• Brake lever: Magura CMe5
• Display: Bosch Kiox 500
• Headlight: Supernova M99 Pro 2
• Taillight: Supernova M99 TL 3 MAX
• Carrier: Racktime Supernova RTA rear rack
• Mudguards: SKS mudguards
• Kickstand: Pletscher Comp kickstand
• Bell: STEVENS D85 bell
• Weight: 29.6 kg
• Max. Rider's weight: 180 kg
• Color(s): London Fog
• Sizes: F 46, 52, 56 cm

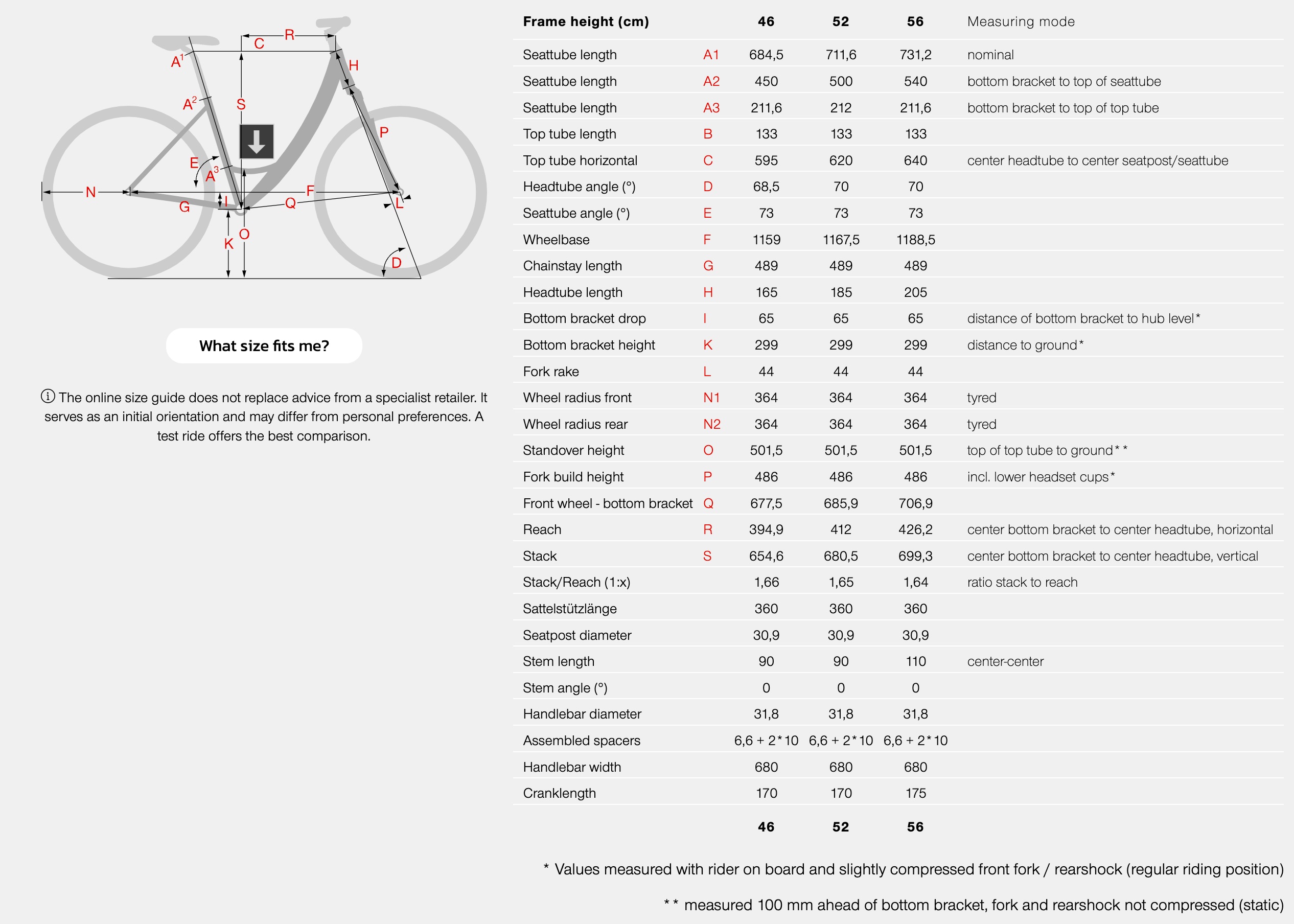

Geometry
