The E-4X Tour offers first-class conditions for starting out on a sporty and active bike tour: As a descendant of STEVENS' X-Crossers, it has a low overall weight – without compromising on robustness, reliability and functionality. The electric thrust of the smooth Bosch Active Line Plus drive unit is also sufficient for long stages thanks to the 400 Wh battery. Hydraulic disc brakes, the Shimano CUES U4000 Linkglide 9-speed gears with a wide gear range and Continental all-round tyres are easily up to the most beautiful (mountain) routes. And the sensitive suspension fork ensures plenty of comfort.

Features

• Lightweight E-tourer with full specification
• Quiet Bosch G3 Active Line Plus drive unit
• Lightweight 400 Wh Bosch PowerPack battery
• Precise Tektro disc brakes with 180 mm discs
• Comfortable suspension fork with 63 mm of travel

Specifications

• Frame: Aluminium 6061 TB
• Fork: SR Suntour Mobie25 LOR
• Headset: STEVENS AH Taper 1 1/8"-1 1/2"
• Brake front: Tektro HD-T280
• Brake rear: Tektro HD-T280
• Brake disc: Tektro TR180-35A
• Crankset: Oxygen E-Scorpo
• Motor sprocket: STEVENS
• Derailleur rear: Shimano CUES U4000 Shadow
• Chain: Shimano CN-LG500
• Cassette: Shimano CS-LG300-9
• Pedals: ATB Alu Pro Reflex
• Engine: Bosch G3 Active Line Plus
• Battery: Bosch PowerPack 400
• Charger: Bosch 4A charger
• Hubs rear: Formula CL-52
• Hubs front: Strummer RTP-1
• Rims: Oxygen RM-26 Disc
• Tires: Continental Double Fighter III
• Handlebar: Oxygen E-Scorpo
• Stem: Oxygen E-Scorpo
• Saddle: Oxygen Havoc
• Seatpost: Oxygen E-Scorpo
• Shift lever right: Shimano CUES U4000
• Brake lever: Tektro HD-T280
• Display: Bosch Purion 200
• Headlight: Trelock Light Hammer 80
• Taillight: AXA Juno
• Carrier: Racktime E-14 RTA rear rack
• Mudguards: SKS mudguards
• Kickstand: STEVENS Edge
• Bell: STEVENS D85 bell
• Weight: 21.7 kg
• Max. Rider's weight: 140 kg
• Color(s): Classic Grey
• Sizes: 46, 50, 54 cm

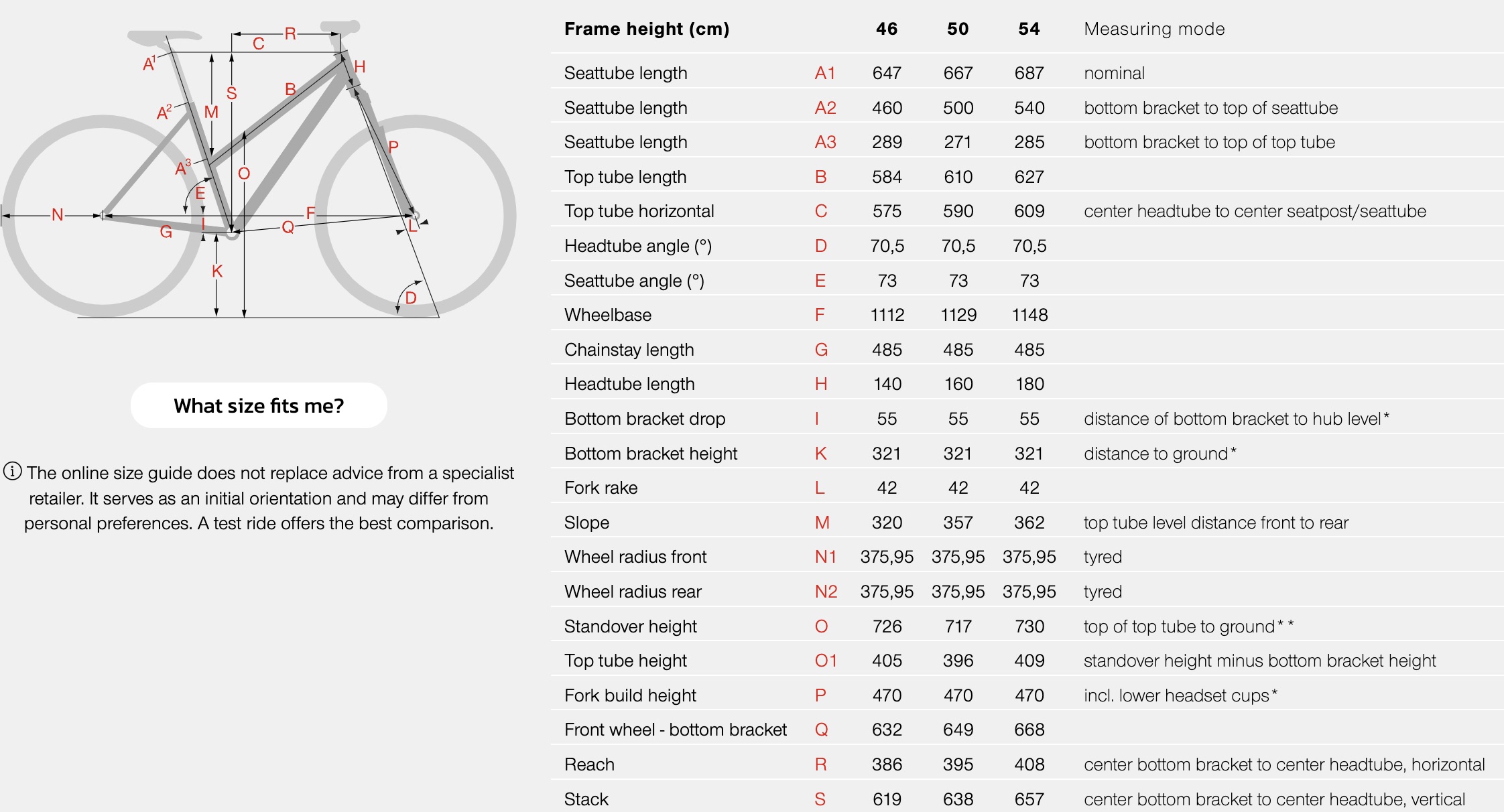

Geometry
