The E-Courier Luxe knows how to impress across the board. Be it its stable frame with integrated 625 Wh battery. Or the proven Bosch Performance Line drive unit with a powerful 75 Nm torque. The smooth 5-speed gear hub with low-maintenance belt drive for silky-smooth forward drive. To top it all off, there is a suspension seat post with lowering function for noticeable riding comfort and easier handling. In addition, full Bosch "The smart system" integration for access to numerous optional and luxurious additional functions such as eBike Lock, navigation and route planning.

Features

• Pedelec with lots of comfort and durable specification
• Bosch Performance Line drive unit and integrated PowerTube 625 battery for long range
• Sensitive Suntour Mobie25 suspension fork with thru axle
• Lowerable seat post at the push of a button (Dropper Post)
• Reliable, precise Tektro disc brakes

Specifications

• Frame: Aluminium 6061
• Fork: SR Suntour Mobie25 LOR
• Headset: Acros Blocklock Taper 1 1/8"-1.8"
• Brake front: Tektro HD-T280
• Brake rear: Tektro HD-T280
• Brake disc: Tektro TR180-35A
• Crankset: Oxygen E-Scorpo
• Chainring: Gates CDX chainring
• Belt: Gates CDX Center Track Carbon Drive Belt
• Derailleur rear: Shimano Nexus-5E
• Cassette: Gates CDX Center Track sprocket
• Pedals: ATB Alu Pro Reflex
• Engine: Bosch G3 Performance Line
• Battery: Bosch PowerTube 625
• Charger: Bosch 4A charger
• Hubs front: Strummer RTP-1
• Rims: Oxygen RM-26 Disc
• Tires: Schwalbe Marathon
• Handlebar: Oxygen E-Scorpo
• Stem: Oxygen Versa II, adjustable
• Saddle: Selle Royal ON Male
• Seatpost: Oxygen E-Scorpo DPR-S-E
• Shift lever right: Shimano Nexus-5 Revo
• Brake lever: Tektro HD-T280
• Display: Bosch Intuvia 100
• Headlight: Trelock Light Hammer 80
• Taillight: B+M Shine Evo
• Carrier: Racktime Shine Evo RTA rear rack
• Mudguards: SKS mudguards
• Kickstand: Pletscher Comp kickstand
• Bell: STEVENS D85 bell
• Weight: 29.4 kg
• Max. Rider's weight: 140 kg
• Color(s): Stealth Black
• Sizes: HT 52, 55, 58, 61 cm

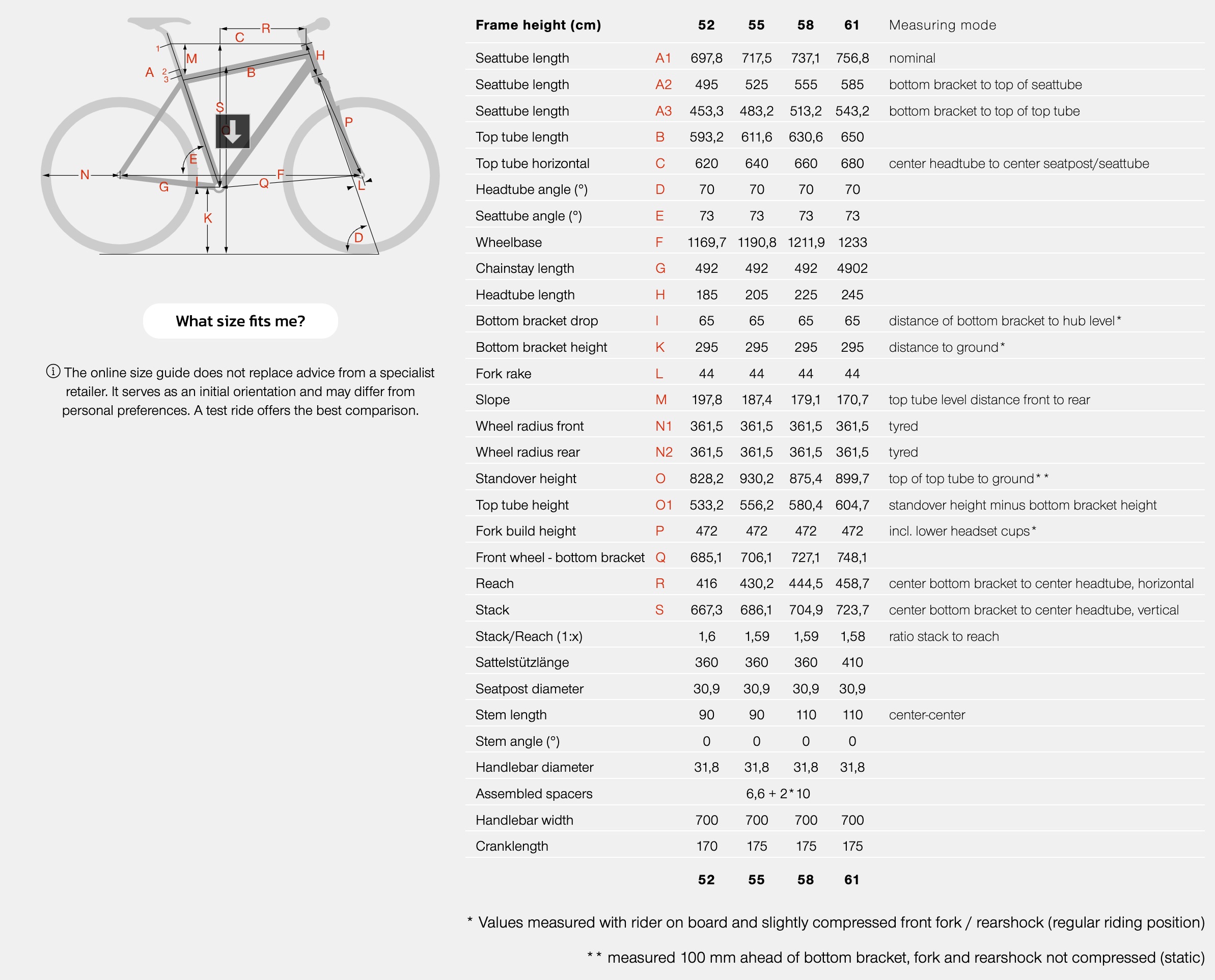

Geometry
