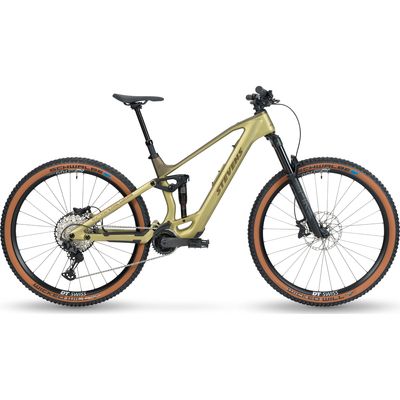

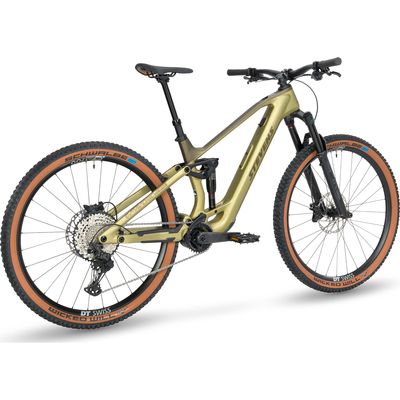

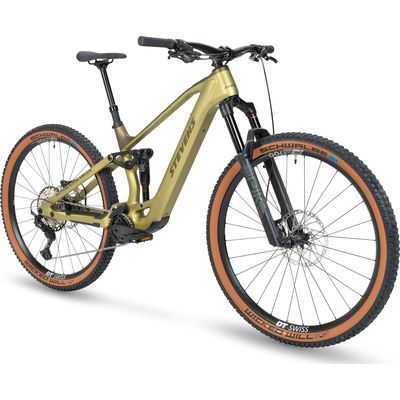

The AM 7.4.3 is the entry into the world of our E-Maverick Light Assist E-MTB series. It is based on the same SL HMF high-tech carbon frame as the AM 9.4.3 and ED 9.4.3. and therefore impresses with its low weight and playful, reactive handling both uphill and downhill. A lot of safety and riding fun even in rough terrain is guaranteed by the sensitive 140 millimetre RockShox suspension consisting of a Pike Select fork and Deluxe Select rear shock. Shimano's popular 12-speed XT groupset changes gears, while Shimano Deore brakes with reliable 203-millimetre discs at the front and rear take care of deceleration. The innovative, ultra-compact drive unit from TQ enables a significantly lower overall weight compared to a power E-MTB and combines a more natural riding feel with plenty of energy-saving support uphill. This means that favourite trails can be taken longer or more often under the 2.4 inch wide lugged tyres.

Features

• Capable Light-Assist all-mountain full-suspension e-MTB w/ high-tech carbon frame and 29" wheels
• Progressive, modern geometry for maximized control both uphill and downhill
• Smooth 140 mm RockShox suspension with Pike Select fork & Deluxe Select rear shock
• Ultra-light and compact TQ-HPR50 drive unit with up to 50 Nm torque for a low overall weight
• Downtube-integrated 360 Wh battery, extendable with optional 160 Wh range extender

Specifications

• Frame: Carbon SL HMF
• Fork: RockShox Pike Select
• Headset: Acros Blocklock Taper 1 1/8"-1 1/2"
• Shock absorber: Rock Shox Deluxe Select
• Brake front: Shimano BR-M6120
• Brake rear: Shimano BR-M6100
• Brake disc: Shimano SM-RT64
• Crankset: FSA CK-702/IS
• Motor sprocket: FSA TQ
• Derailleur rear: Shimano Deore XT Shadow
• Chain: Shimano CN-M6100
• Cassette: Shimano SLX
• Pedals: MTB Flatpedal Reflex
• Engine: TQ HPR50
• Battery: TQ HPR-BAT01
• Charger: TQ 4A charger
• System wheel front: DT Swiss HX 1700 Spline
• System wheel rear: DT Swiss HX 1700 Spline
• Tires: Schwalbe Wicked Will Evolution
• Handlebar: Oxygen E-Scorpo
• Stem: Oxygen E-Scorpo
• Saddle: Fizik Terra Alpaca
• Seatpost: Oxygen E-Scorpo DPR-E
• Shift lever right: Shimano Deore XT
• Brake lever: Shimano BL-M6100
• Display: TQ HPR Display
• Bell: STEVENS D85 bell
• Weight: 17.9 kg
• Max. Rider's weight: 140 kg
• Color(s): Light Olive
• Sizes: 29" - R1, R2, R3, R4, R5
