A stable frame with suspension fork and comfort geometry. Reliable components from the low-wear Shimano CUES Linkglide 9-speed derailleur to hydraulic Tektro disc brakes. The functional everday specification is exemplary – a plus in everyday life and on weekend excursions. If you have had to pedal alone up to now, the E-Molveno makes the switch to a motor-assisted bike particularly easy – and at an attractive initial price.

Features

• Versatile E-bike in 3 frame shapes and a wide range of sizes
• Silent Bosch G3 Active Line drive unit with persistent 400 Wh battery
• Load-capable designed frame tubes made of aluminium 6061
• Reliable, precise Tektro disc brakes
• Comfortable cockpit w/ adjustable stem

Specifications

• Frame: Aluminium 6061
• Fork: SR Suntour NX1-Coil LO
• Headset: STEVENS AH 1 1/8"
• Brake front: Tektro HD-T280
• Brake rear: Tektro HD-T280
• Brake disc front: Tektro TR180-35A
• Brake disc rear: Tektro TR160-35
• Crankset: Oxygen E-Scorpo
• Motor sprocket: STEVENS
• Derailleur rear: Shimano CUES U4000 Shadow
• Chain: Shimano CN-LG500
• Cassette: Shimano CS-LG300-9
• Pedals: ATB Alu Reflex
• Engine: Bosch G3 Active Line
• Battery: Bosch PowerPack 400
• Charger: Bosch 2A charger
• Hubs rear: Formula CL-52
• Hubs front: Formula CL-51
• Rims: Oxygen RM-26 Disc
• Tires: Schwalbe Marathon
• Handlebar: Oxygen E-Scorpo
• Stem: Oxygen Versa II, adjustable
• Saddle: Selle Royal Nuvola Gent
• Seatpost: Oxygen E-Scorpo
• Shift lever right: Shimano CUES U4000
• Brake lever: Tektro HD-T280
• Display: Bosch Purion
• Headlight: AXA E-Bike 45
• Taillight: AXA Juno
• Carrier: STEVENS rear rack
• Mudguards: SKS mudguards
• Kickstand: Pletscher Comp kickstand
• Bell: STEVENS D85 bell
• Weight: 23.9 kg
• Max. Rider's weight: 140 kg
• Color(s): Velvet Black
• Sizes: HT 48, 52, 55, 58, 61 cm

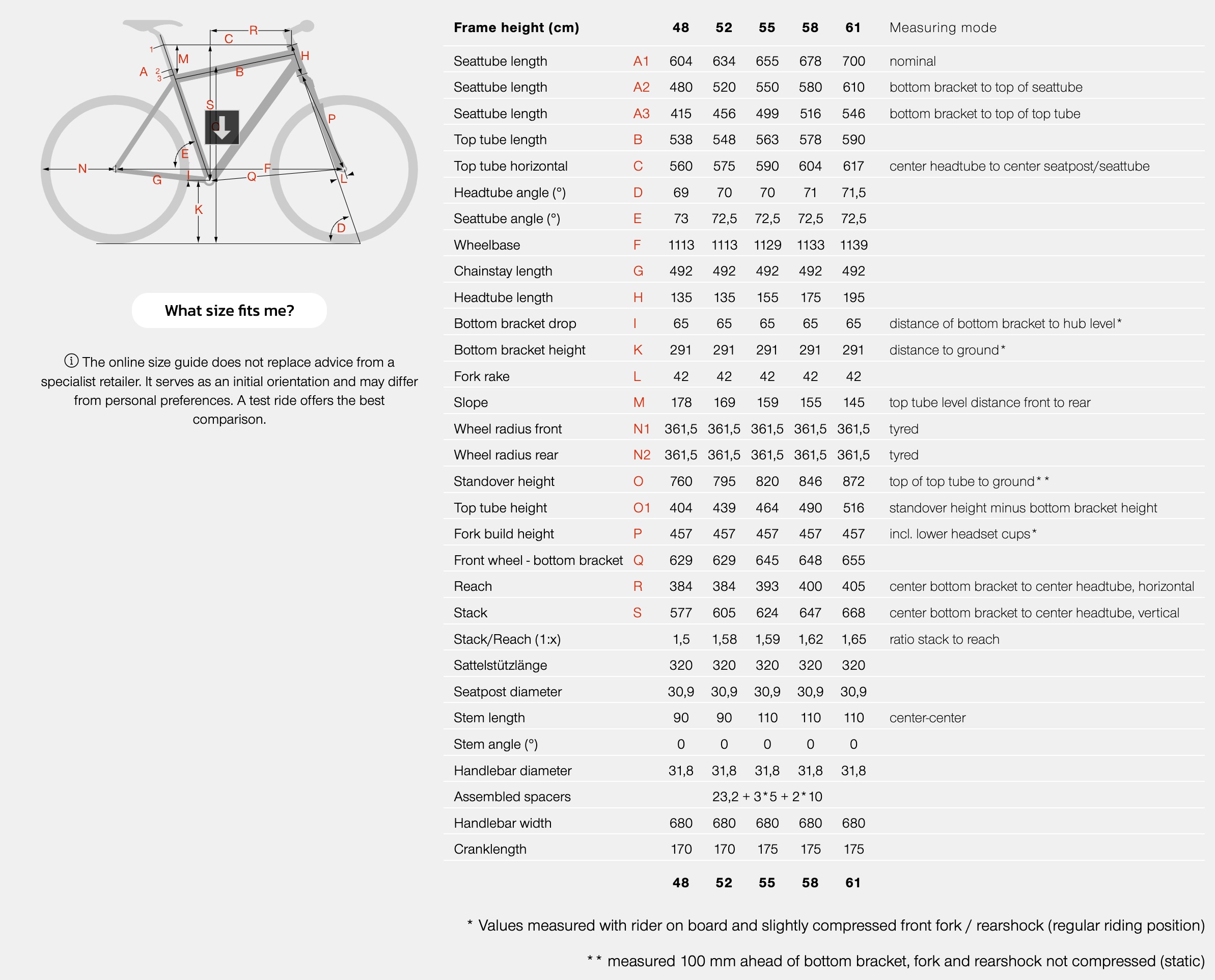

Geometry
