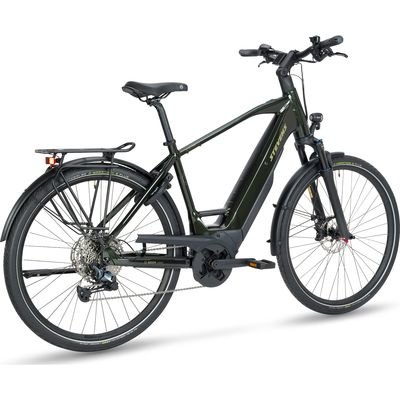

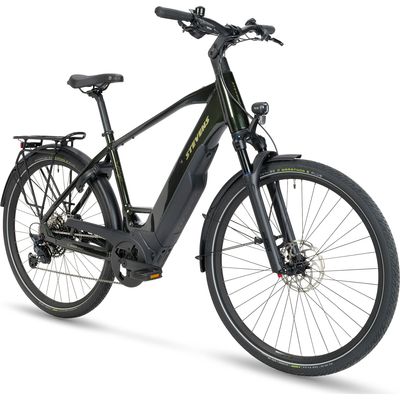

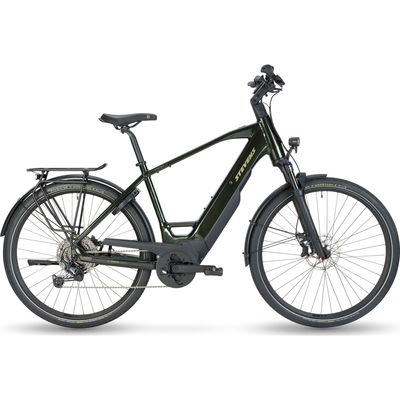

Even more endurance for demanding tours. The E-Triton 7.7.1 not only promises you this - the top touring e-bike also knows how to keep this promise thanks to the high-capacity Bosch 725 Wh battery. The Bosch Performance Line CX Drive Unit provides the superior drive and the shifting is smooth and extra durable with Shimano's E-bike-optimised CUES Linkglide 11-speed drivetrain. If you want or need to slow down at high speed, the Tektro Volans disc brakes with 180-millimetre brake discs provide you with plenty of well-dosed braking power.

Features

• Top-specced E-Tour pedelec in two frame variants
• Bosch Performance Line CX Drive Unit with Kiox 300 display
• 725 Wh PowerPack battery for long range
• High-quality Shimano CUES U8000/U6000 Linkglide 11-speed drivetrain
• Powerful Tektro Volans brakes

Specifications

• Frame: Aluminium 6061
• Fork: SR Suntour Mobie34-Air
• Headset: Acros Blocklock Taper 1 1/8"-1.8"
• Brake front: Tektro Volans
• Brake rear: Tektro Volans
• Brake disc: Tektro TR180-45A
• Crankset: Oxygen E-Scorpo
• Motor sprocket: STEVENS G4
• Derailleur rear: Shimano CUES U8000 Shadow
• Chain: Shimano CN-LG500
• Cassette: Shimano CS-LG400-11
• Pedals: ATB Alu Pro Reflex
• Engine: Bosch G4 Performance Line CX
• Battery: Bosch PowerPack 725
• Charger: Bosch 4A charger
• Hubs rear: Strummer M42-3
• Hubs front: Strummer G15-3
• Rims: Oxygen RM-26 Disc SL
• Tires: Schwalbe Marathon E-Plus Performance
• Handlebar: Oxygen E-Scorpo
• Stem: Oxygen Versa II, adjustable
• Saddle: Selle Royal ON Female
• Seatpost: Oxygen E-Scorpo
• Shift lever right: Shimano CUES U6000
• Brake lever: Tektro HD-T532
• Display: Bosch Kiox 300
• Headlight: B M IQ-XS Friendly
• Taillight: B M Shine Evo
• Carrier: Racktime Shine Evo RTA rear rack
• Mudguards: SKS mudguards
• Kickstand: STEVENS Edge
• Bell: STEVENS D85 bell
• Weight: 28.8 kg
• Max. Rider's weight: 140 kg
• Color(s): Deep Green | Glacier Blue
• Sizes: HT 52, 55, 58, 61 cm

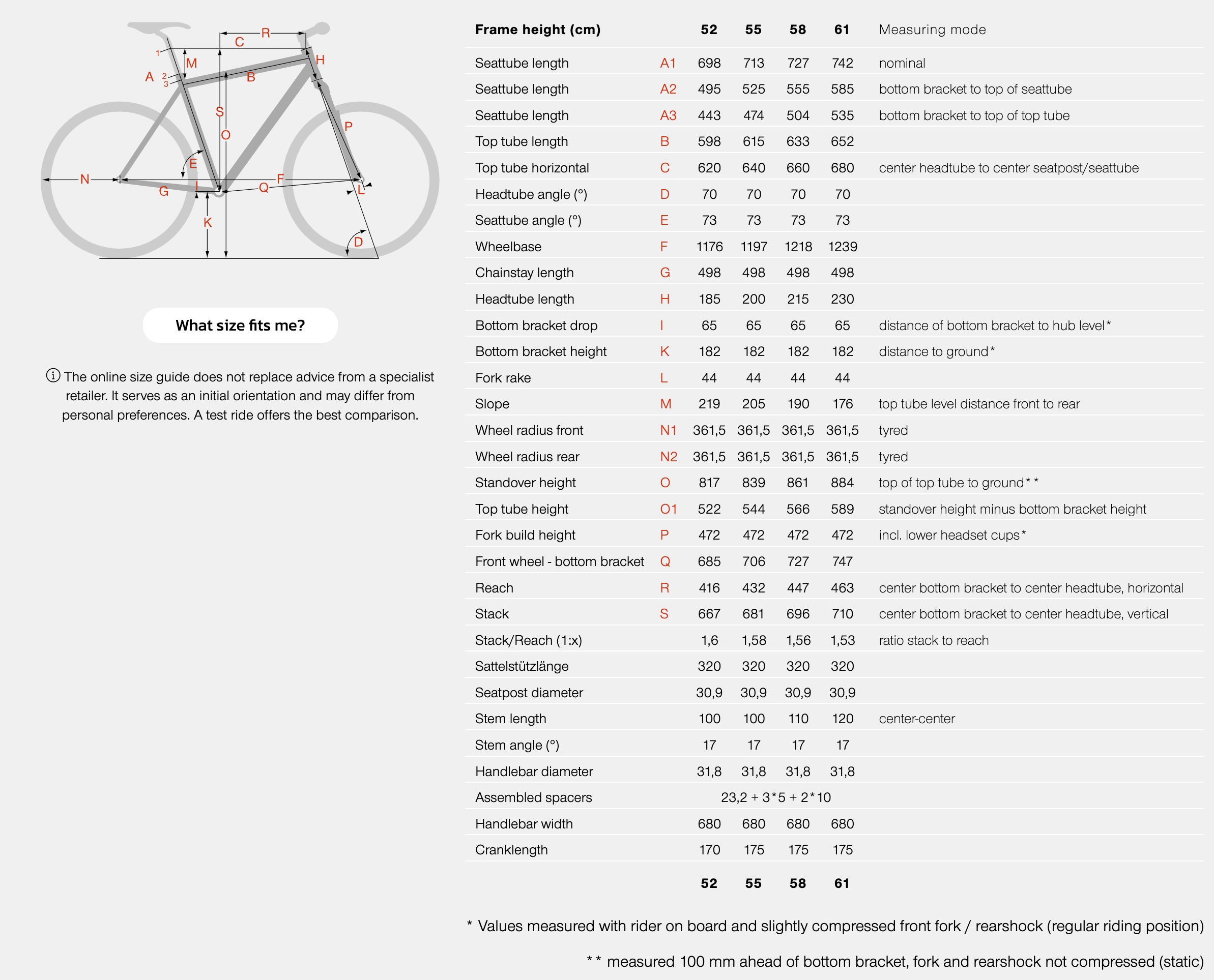

Geometry
